SC Based Connector Singlemode G657A Fiber Optical Pigtail

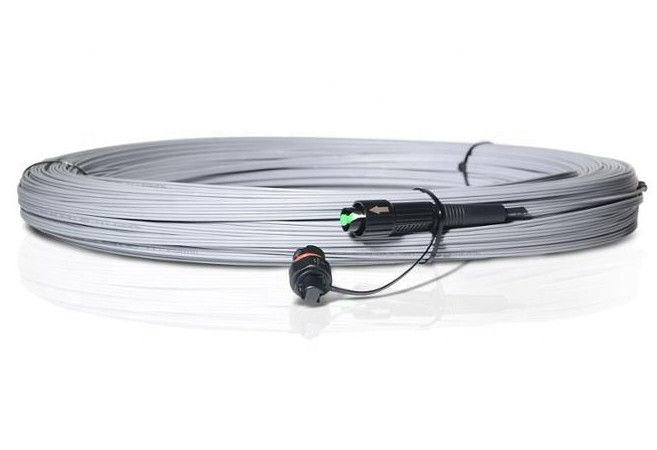

Large Image : SC Based Connector Singlemode G657A Fiber Optical Pigtail

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	CY COM
Certification:	ISO9001:2015 , ISO14001:2015, RoHS,SGS
Model Number:	SC LC

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiable
Packaging Details:	PE bag or plastic box and Carton box
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30000pcs per day

Contact Now

Detailed Product Description

Model Number:	FTTH Fiber Optic Pigtail, FTTH Fiber Optic Pigtail	Fiber Type::	G657A Or G652D
Jacket Color::	Black Or White	Cable Type::	Fig 8 Drop Cable, Flat Cable, Round Cable
Cable Jacket::	Low Friction LSZH	Application:	FTTH FTTB FTTX Network
Highlight:	G657A Fiber Optical Pigtail , G657A Single mode Pigtail , G657A SC Connector Pigtail

SC Based Connector Singlemode G657A Fiber Optical Pigtail

Optitap compatible optical pigtails pre terminated with IP67 waterproof SC APC SM SX G657A1 for outdoor FTTH solution

Description:

Corning Optitap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
The end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal. The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications

Features :

Single fiber, SC-based connector

Rodent resistant IP67 water and dust protection

Low profile in-line receptacle available

No installation tools required

Cable diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm

In-line connection available

Application:

FTTH,LAN,PON & Optical CATV.

Telecom Net

Optical Fiber Communication System

Parameters

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥30dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃
