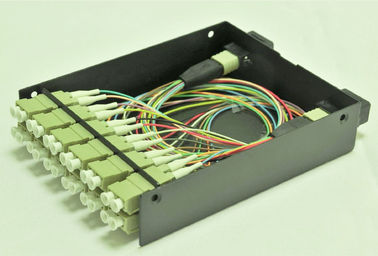

MPO Patch Cord Breakout MPO-LC 2.0mm Fanout Trunk Cable 8 Cores OM3
| Min.Order Quantity:: | 10 Piece/Pieces | MPO: | Female / Male |
| polarity: | A / B / C | Fiber: | Single Mode / Multi-mode |
| High Light: | patch cord optical fiber,fiber optic cassette |
||
MPO fiber optic patch cords are with MPO fiber optic connectors. They are several fiberglass connections in one such patch cord, for example, 4 fiber, 8 fiber, 12 fiber, etc. Single mode and multimode; PC, APC polishing, Male and Female types are available.
Features:
High fiber density (24 fibers for Multimode)
Low insertion loss and reflection loss
Good Durability
Good Exchangeability
High temperature stability
Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Specification:
| Parameter | Unit | MPO-OM3-PC |
| Insertion loss | dB | ≤0.7(Standard) 0.35(typical) |
| Return loss | dB | ≥35 |
| Exchangeability | dB | ≤0.3 |
| Vibration | dB | ≤0.3 |
| Operating temperature | ℃ | -40~75 |
| Storage temperature | ℃ | -45~85 |
Ordering Information:
MPO/PC-LC/PC-MM-8cores-1M-LSZH
1 2 1 2 3 4 5 6
1.Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2.Ferrule End-face: PC, UPC, APC
3.Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4.Fiber core: 4 core, 8 core, 12 core, 24 core
5.Cable Length: 1, 2, 3 meter or customized
6.Cable type: PVC, LSZH, OM3, OFNR, OFNP
-
