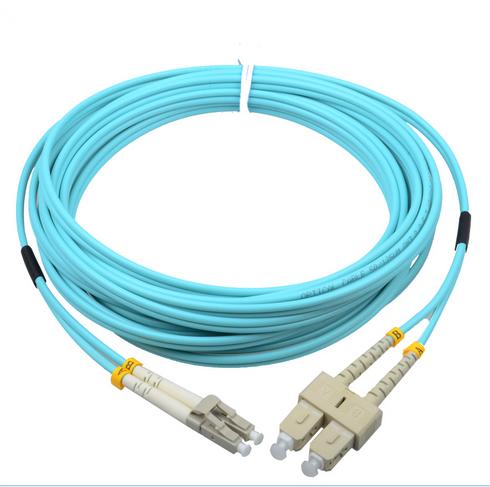

Corning cable SC/PC-LC/PC OM3 50/125 2.0mm aqua fiber optic hybrid jumper
| Cable Jacket: | OFNR | Color: | Aqua |
| Length: | Can Be Customized | ||
| High Light: | fiber patch cord,st patch cord |
||
Corning cable,SC/PC-LC/PC OM3 50/125 2.0mm aqua fiber optic hybrid jumper,OFNR out jacket
Applications :
♦Local Area Network
♦Wide Area Network
♦CATV,LAN,MAN WAN Network
♦FTTX System
♦Test Instruments
Features :
♦Low insertion loss, high return loss
♦Small, light, high dense connection
♦Standard exact plastic material
♦High credibility and stability
♦Good in repeatability and exchangeability
| Parameter | Unit | FC, SC, LC/ Armoured fiber patch cord | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable diameter | mm | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
Order information:
- Type: SX/DX optional
- Ferrule end face: APC/UPC/PC
- Diameter: 0.9, 2.0, 3.0mm
- Length:1m, 2m, 3m to 120m
- Fiber: SM/OM1/OM2/OM3/OM4
- Material of jacket: PVC/LSZH/OFNR
-
