YELLOW 2.0mm SM G652D LSZH Optical Fiber Pigtail

Large Image : YELLOW 2.0mm SM G652D LSZH Optical Fiber Pigtail

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	CY COM
Certification:	ISO9001:2015 , ISO14001:2015, RoHS,SGS
Model Number:	SC LC FC

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiable
Packaging Details:	PE bag or plastic box and Carton box
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30000pcs per day

Contact Now

Detailed Product Description

Length:	20m Or Customized	Certification:	RoHS,ISO9001
Cable Color:	YELLOW	Connector:	SC,FC,LC
Cable Diameter:	2.0mm	Insertion Loss:	IL<0.2db
Model Name:	48/72 Cores Pigtail	Fiber Count::	24core 48 Core 72cores
Highlight:	LSZH Optical Fiber Pigtail , G652D Optical Fiber Pigtail , SM Optical Fiber Pigtail

YELLOW 2.0mm SM G652D LSZH Optical Fiber Pigtail

72core Pigtail breakout cable corning SM G652D LSZH one end with connector SC/APC 2.0mm

Description:

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.CY COM fiber optic pigtails includes 1fiber, 4/6/8/12/24/48/72/144 fiber pack with different connectors of SC, LC,FC, ST , with UPC or APC polish type. These can be come with singlemode, multimode or OM3, with 900um tight buffer PVC or LSZH jacket. Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, Data processing networks, LAN/WAN network, and more.

Features :

1) Superior qualified standard PC, APC, UPC, SPC polishing;
2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
4) φ0.9mm, φ2.0mm, φ3.0mm cable optional;
5) Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
6) FC, SC, LC, MU, ST, MT-RJ, etc connector
7) Simplex and duplex connector available; 8) Good exchange ability and good durability;
9) Available in fiber bunch, ribbon fan-out, pigtail available;
10) Meets ISO9001, ROHS and Bell core GR 326-core standards;
11) Customized specifications are welcomed.

Application:

1) CATV, metro test equipment;
2) Telecommunication networks;
3) Local area networks (LAN);
4) Wide area networks (WAN);
5) Premise installations;
6) Data processing networks.

Parameters

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1 set/bag

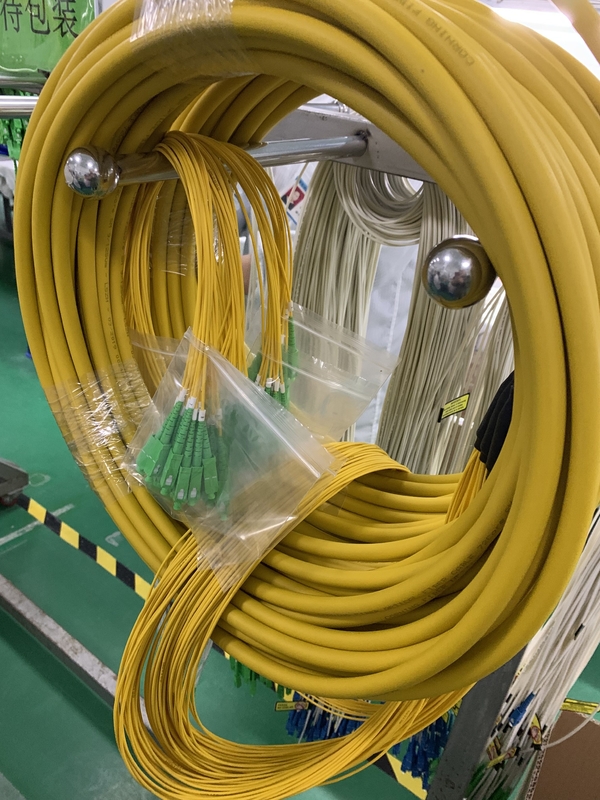

YELLOW 2.0mm SM G652D LSZH Optical Fiber Pigtail 0

YELLOW 2.0mm SM G652D LSZH Optical Fiber Pigtail 2
