| Ferrule End-face: | UPC, APC(8°） | Ferrule Brand: | CCTC |
|---|---|---|---|
| Boot Diameter: | 0.9/2.0/3.0mm | Fiber Type: | SM / MM |
| Color: | Blue / Green / Customized | Structure: | Simplex / Duplex |
| Boot Type: | Hollow | Material: | PEI / FBT |
| Highlight: | 3.0mm CCTC Fiber Optics Accessories,3.0mm Patch cord Connector,2.0mm Patch cord Connector |
||

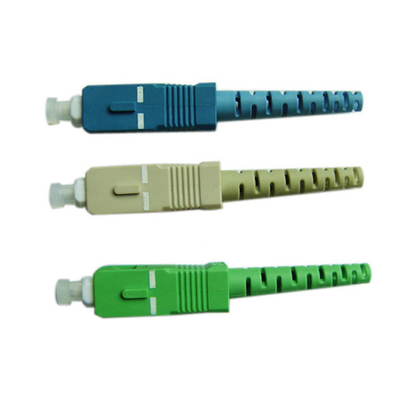

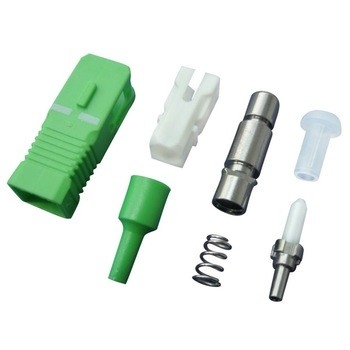

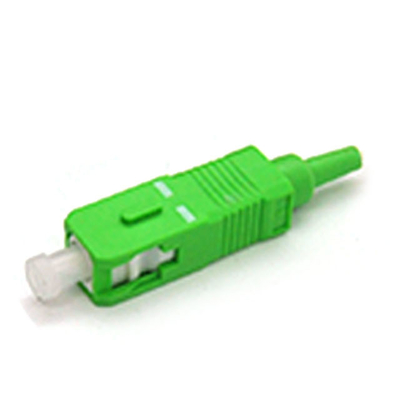

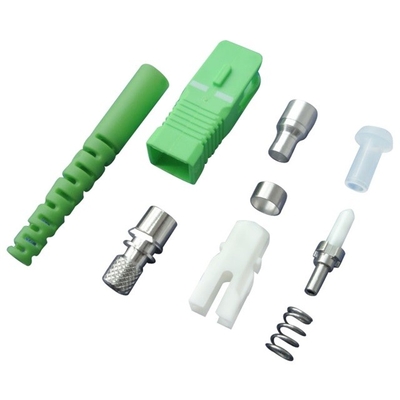

SC PC 0.9 2.0 3.0 SM MM Fiber Optic Patchcord Connector and Ceramic Ferrule
General Description
Optical Terminators are functional devices using Metal-lon Doped fibers. These products prevent the reflection of light that are present at open end systems. Fiber optic terminator can terminate unused fiber connector ports in fiber optic systems . Fiber opticterminators are passive components that absorb light coming from unterminated connector plugs. By minimizing the reflected power, the terminator can reduce signal degradation in digital and analog systems.
Main Features
Return Loss: UPC >55 dB,
APC>65 dB Back Reflection: APC<-65dB,
UPC<-55dB Temperature Cycling:-20℃~-80℃
Polishing Grade: PC, UPC, APC
Connector Type: SC, FC, ST, LC. MU
Fiber type: SM(9/125um)
Optical performance 100% factory tested
Easy installation as plug type
Applications:
Specifcation:
|
Items |
Single mode | Multimode | ||||||
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |||
| Insertion Loss | <0.2dB | <0.3dB | ||||||
| Return Loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB | ||||
| Durability | <0.1dB typical change, 500 matings |
|||||||
Drawing:
