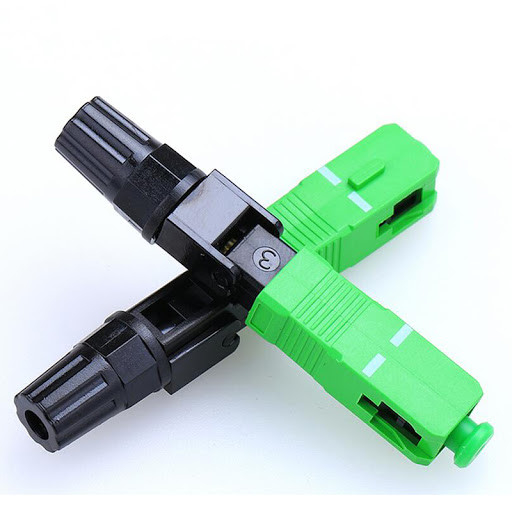

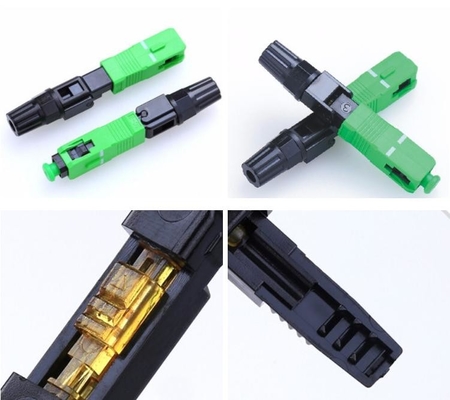

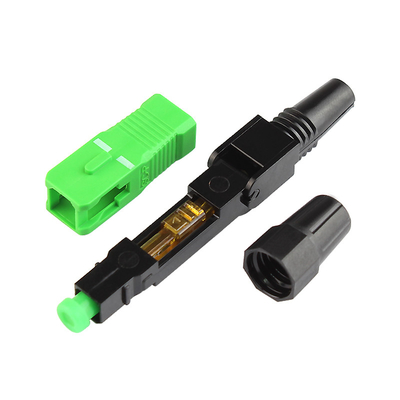

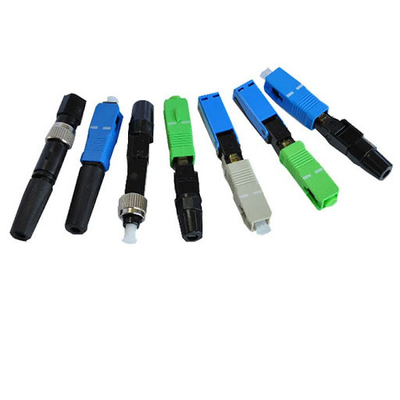

Telecom Networks FTTH SC APC 60dB Fiber Optic Fast Connector

Large Image : Telecom Networks FTTH SC APC 60dB Fiber Optic Fast Connector

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	CY COM
Certification:	ISO ROSH
Model Number:	SC APC

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	PE package bag
Delivery Time:	3-7 days
Payment Terms:	Western Union, T/T
Supply Ability:	100K / Week

Contact Now

Detailed Product Description

Product Name:	Fast Connectors	Color:	Green
Connector:	SC APC	Length:	55MM
Insertion Cycle:	More Than 1000 Times	Application:	Telecom Networks FTTX CATV
Insertion Loss::	IL<0.2db	Return Loss::	APC 60dB
Highlight:	60dB Fiber Optic Fast Connector , 60dB SC APC SC APCConnector , 60dB FTTH Fast Connector

Telecom Networks FTTH SC APC 60dB Fiber Optic Fast Connector

FTTH SC APC fiber optic fast Connector / Field Pre-Assembly Optical Fast Connector

Introduction:

* Factory-installed fiber stub.

* Low insertion loss and high return loss

* No epoxy and polishing required, No special tools needed when installed.

* Allows up to three re-termination result.

* Easily installed, Quick and easy fiber termination in the field.

* Only 30 seconds needed to learn the process of installation and making.

* Cost effective, Warranty: One year

* Fast connecting and repeat, No special tools needed when installed.

* Can be made on-site without splicing connectors.

* Eliminates cable excess length and pigtail splice storage.

* Can be intalled and maked repeatedly thus avoiding loss.

Application:

1. Local Area Network

2. Data communication network

3. Telecommunication optical transmission network

4. Optical access network(OAN)

5. Active device termination

6. CATV

7. Fiber optics data transmission(FODT)

Specification:

Category	Specification		Remarks
Aoolicable for	Drop cable.Indoor cable
Fiber mode	Single mode or Multi mode
Operation time	S	About 50(no fiber cut)
Insertion Loss	dB	≤0.5
Insertion Loss Typical value	dB	0.3
Return Loss	dB	≥50
Fastening strength of naked fiber	N	≥5
Tensile strength	N	≥50
Reusable	Time	≥10 times
Operating Temperature	℃	-40~+85
On-line tensile strength(20N)	dB	ΔIL≤0.3
Mechanical durability(500 times)	dB	ΔIL≤0.3
Drop-off test(drop-off height4m,once per direction,totally 3 times)	dB	ΔIL≤0.3
