Product Details:
Payment & Shipping Terms:
|
| Steel Rod Diameter:: | 1.0mm/1.2mm/1.5mm | Shrinking Temperate: | 110 ~ 130 Degrees |
|---|---|---|---|
| No. Of Fiber:: | 1 | Length:: | 45mm /60mm |
| Loss At -40°C:: | 0.03dB | Application: | FTTH ,Splice |
| Highlight: | 0.03dB Fiber Optics Accessories,45mm Heat Shrinkable Sleeve,60mm Heat Shrinkable Sleeve |
||

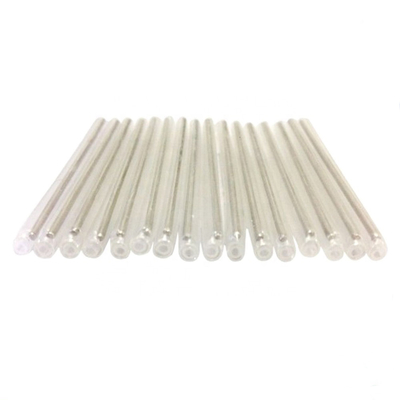

60mm 45mm Heat Shrinkable Sleeve 0.03dB Fiber Optics Accessories
Product Description

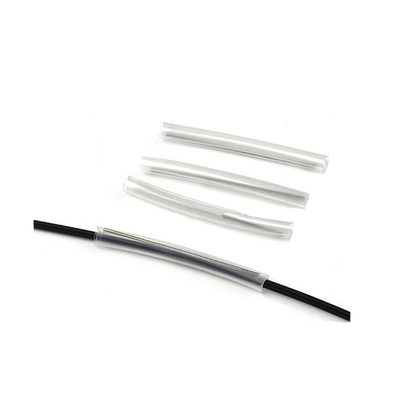

Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing

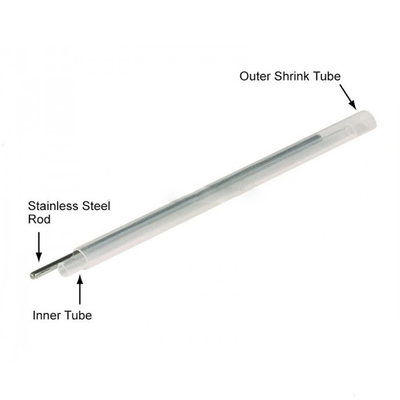

Consist of cross linked polyolefin, Hot fusion tubing and Stainless Reinforcing Steel Rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage. Sealing structure make the splice free from influence of temperature and humidity in special environment.
Feature
* Working Temperature : -45 ~ 110 °C
* Shrinking temperature range:90~ 120 °C
* Standard color: Clear
* Other 12 colors available: White, Blue, Grey, Yellow, Brown, Black, Orange, Pink, Red, Cyan, Green, Purple
|
Shrinking Temperature (°C) |
110 ~ 130 |
|
Radial Shrinking Rate (%) |
>50 |
|
Axial Shrinking Rate (%) |
<10 |
|
Low Temperature Property |
No crackle at -55°C lasting 4 hours |
|
Normal Operation (°C) |
-55°C ~ + 135°C |
|
Normal Operature Relative Humidity |
≤95% |
|
Spark- over Strength(kV/mm) |
≥20 |
|
Tensile Strength (Mpa) |
20 |
|
Loss at -40°C |
0.03dB |
|
Loss at +60°C RH95% |
0.02dB |
Technical Data
|
Properties |
Test Method |
Typical Data |
|
Tensile Strength (MPa) |
ASTM D 2671 |
≥18 Mpa |
|
Ultimate Elongation (%) |
ASTM D 2671 |
700% |
|
Density (g/cm2) |
ISO R1183D |
0.94g/ cm2 |
|
Dielectric Strength (KV/mm) |
IEC 243 |
20KV/MM |
|
Dielectric Constant |
IEC 243 |
2.5max |
|
Longitudinal Change (%) |
ASTM D 2671 |
±5% |
Single fiber(mm)
|
Model |
Splice Protection Sleeves (After Shrinkitng) |
Fusion Tubing |
Stainless steel rod |
|||
|
Outer |
Length |
Inner Diameter |
Length |
Outer |
Length |
|
|
HSFP-H-60x1.5x3.0 |
3 |
61 |
1.5 |
60 |
1.5 |
55 |
|
HSFP-H-45x1.5x3.0 |
3 |
45 |
1.5 |
45 |
1.5 |
40 |
|
HSFP-H-40x1.5x3.0 |
3 |
40 |
1.5 |
40 |
1.5 |
35 |
|
HSFP-H-25x1.5x3.0 |
3 |
25 |
1.5 |
25 |
1.5 |
20 |
|
HSFP-H-61x1.2x2.6 |
2.6 |
61 |
1.5 |
61 |
1.2 |
55 |
|
HSFP-H-45x1.2x2.6 |
2.6 |
45 |
1.5 |
45 |
1.2 |
40 |
|
HSFP-H-40x1.2x2.6 |
2.6 |
40 |
1.5 |
40 |
1.2 |
35 |
|
HSFP-H-25x1.2x2.6 |
2.6 |
25 |
1.5 |
25 |
1.2 |
20 |
|
HSFP-H-61x1.0x2.4 |
2.4 |
61 |
1.5 |
61 |
1 |
55 |
|
HSFP-H-45x1.0x2.4 |
2.4 |
45 |
1.5 |
45 |
1 |
40 |
|
HSFP-H-40x1.0x2.4 |
2.4 |
40 |
1.5 |
40 |
1 |
35 |
|
HSFP-H-25x1.0x2.4 |
2.4 |
25 |
1.5 |
25 |
1 |
20 |
|
HSFP-H-40x0.8x2.2 |
2.2 |
40 |
1.5 |
40 |
0.8 |
40 |
|
HSFP-H-25x0.8x2.2 |
2.2 |
25 |
1.5 |
25 |
0.8 |
25 |
|
HSFP-H-18x0.8x2.2 |
2.2 |
18 |
1.5 |
18 |
0.8 |
18 |
|
HSFP-H-40x0.5x1.3 |
1.3 |
40 |
0.35 |
40 |
0.5 |
40 |
|
HSFP-H-25x0.5x1.3 |
1.3 |
25 |
0.35 |
25 |
0.5 |
25 |
|
HSFP-H-18x0.5x1.3 |
1.3 |
18 |
0.35 |
18 |
0.5 |
18 |
Ribbon Fiber(mm)
|
Model |
Splice Protection Sleeves (After Shrinkitng) |
Fusion Tubing |
Quartz or Ceramic Rod |
|||
|
Outer |
Outer |
Width x Height |
Length |
Width x Height |
Length |
|
|
HSFP-C-6core |
3.7 |
40 |
3.0x1.2 |
40 |
3.0x1.5 |
40 |
|
HSFP-2C-6core |
4.6 |
40 |
3.0x1.2 |
40 |
3.0x1.5 |
40 |
|
HSFP-C-12core |
4.1 |
40 |
4.0x1.5 |
40 |
4.0x2.0 |
40 |
|
HSFP-2C-12core |
5.8 |
40 |
4.0x1.5 |
40 |
4.0x2.0 |
40 |
|
HSFP-Q-6core |
3.7 |
40 |
3.0x1.2 |
40 |
3.0x1.5 |
40 |
|
HSFP-2Q-6core |
4.6 |
40 |
3.0x1.2 |
40 |
3.0x1.5 |
40 |
|
HSFP-Q-12core |
4.1 |
40 |
4.0x1.5 |
40 |
4.0x2.0 |
40 |
|
HSFP-2Q-12core |
5.8 |
40 |
4.0x1.5 |
40 |
4.0x2.0 |
40 |
