Product Details:
|
| Product Name: | Attenuator | Fiber Mode: | Single Mode, Multimode |
|---|---|---|---|
| Attenuation Accurancy: | 1-9dB ±0.5dB, 10-30dB ±10% | Attenuation Range: | 0-30dB |
| Return Loss: | PC≥45 DB; UPC≥50 DB ;APC ≥60 DB | Repeatability: | 1000 Times |
| Operating Wavelength (nm): | 1260~1620(SM) | Operating Temperature: | -40-80°C |
| Connector: | FC UPC | Color: | Red |
| Highlight: | Fiber Optic Attenuator Multimode,FC UPC Fiber Optic Attenuator,1310nm Fiber Attenuator |
||
Optical attenuator is a passive device used to reduce the power level of an optical signal. It could be applied to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
CY COM offers LC,FC,SC,ST and MU fixed attenuator with different attenuation level, from 1dB to 30dB.
Features :
Compact design fits in existing connections or patch panels
RoHS compliant for all SC attenuator material
Application:
Telecommunications Networks
CATV Networks
Data Communications
Instrumentation
Local Area Networks
Specification:
| Product name | Fiber optic attenuator |
| Application: | FTTH FTTB FTTX Network |
| Operating Wavelength (nm): | 1310/1490/1550 |
| Applicable fibers: | SM MM G655 |
| Attenuation Tolerance | ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) |
| Return Loss | PC:≥50 UPC: ≥55 APC: ≥60 |
| Operating Wavelength | SM:1310/1550nm MM: 850 /1300nm |
| Working Temperature | T -25~+75 |
| Storage Temperature (℃): | 40~85 |
Ordering Information:
Step 1: Connector type: FC, SC, LC, ST
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nmc

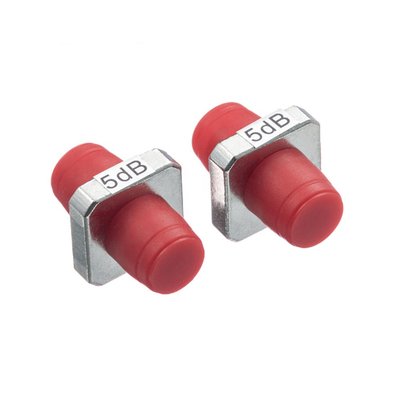

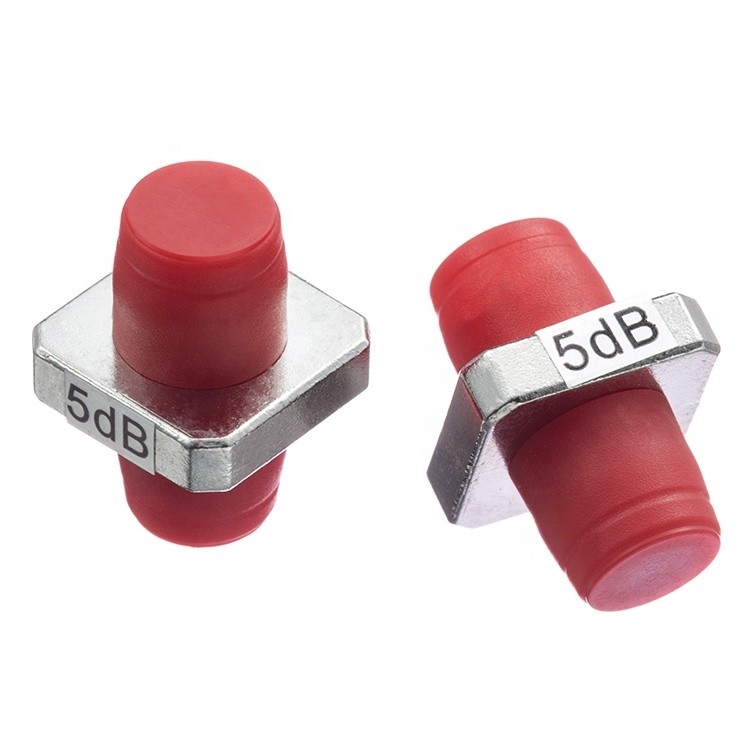

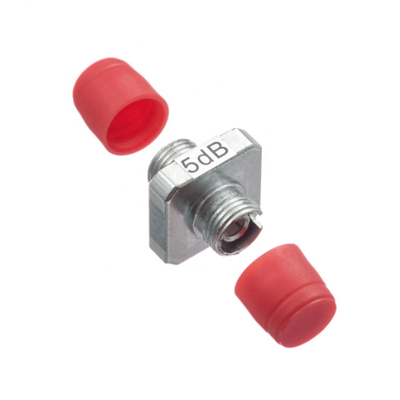

Product picture
Factory picture
