Male To Female Single Mode SC APC 30dB Fiber Optic Attenuator
| Product name: | Attenuator | Fiber Mode: | Single Mode, Multimode |
| Attenuation Accurancy: | 1-9dB ±0.5dB, 10-30dB ±10% | Attenuation range: | 0-30dB |
| Return loss: | PC≥45 DB; UPC≥50 DB ;APC ≥60 DB | Repeatability: | 1000 Times |
| Operating Wavelength (nm): | 1260~1620(SM) | Operating temperature: | -40-80°C |
| Connector: | SC | ||
| High Light: | 30dB Fiber Optic Attenuator,sc apc attenuator,30dB Single Mode Attenuator |
||
The fiber attenuator is an optical device that reduces the energy of an optical signal. It is used to attenuate the input optical power and avoid the distortion caused by the optical receiver due to the strong input optical power.
As an optical passive device, the optical fiber attenuator is used for debugging optical power performance in optical communication systems, calibration of debugging optical fiber instruments, and attenuation of optical fiber signals.
2. Fiber Optical Attenuator Features:
1. Metal ion doped fiber
2. High-power light source durability
3. Wavelength independence
4. Attenuation levels ranging from 1dB to 30dB, with standard and premium tolerances, plus custom configurations
5. 1310nm, 1550nm, 1250-1625nm and 1350/1550nm dual wave lengths
6. FC, SC, ST, LC ,optional
7. Plastic or metal housing material
Why choose us?
1. We support mini order even 1pcs.
2. We have large stock. Small quantity delivery within 2days, big quantity delivery within 1 week.
3. Over 8 Years Experience in Optical Patch Cord industry.
4. Good quality and competitive prices. Strictly quality control.
5. Excellent after-sales service. We supply 24 hours online-service. You can call/Email us at any time.
Technical Specs
| Product Name | Fiber Attenuator |
| Type | 5dB 10dB |
| Wavelength | 1310nm or 1550nm |
| Connetor Type | LC |
| Intertion Loss(dB) | Less than 0.3dB |
| Return Loss | More than 60dB |
| Repeatability | Less than 0.2dB |
| Exchangeability | Less than 0.1dB |
| Material | Metal or Ceramic |
| Operting termperature | -40~85°C |

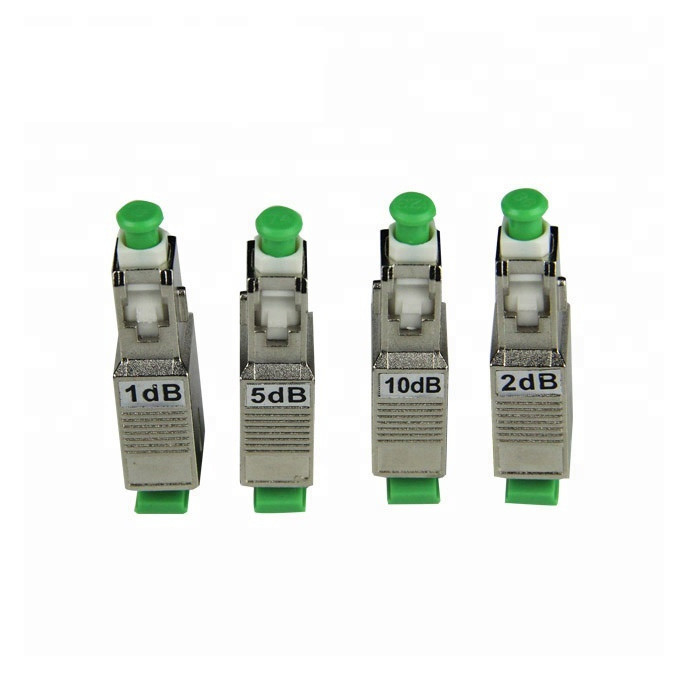

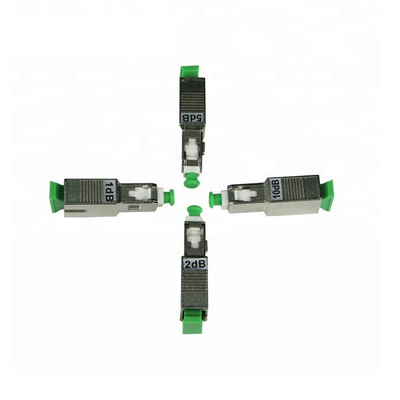

Product picture
Factory picture
-
MThe product is highly cost effective,the company salesman have good service,professional!
-
DExperienced supplier,good service,it is valuable to have a long cooperation.
-
QNice appearance,good packing,excellent!
