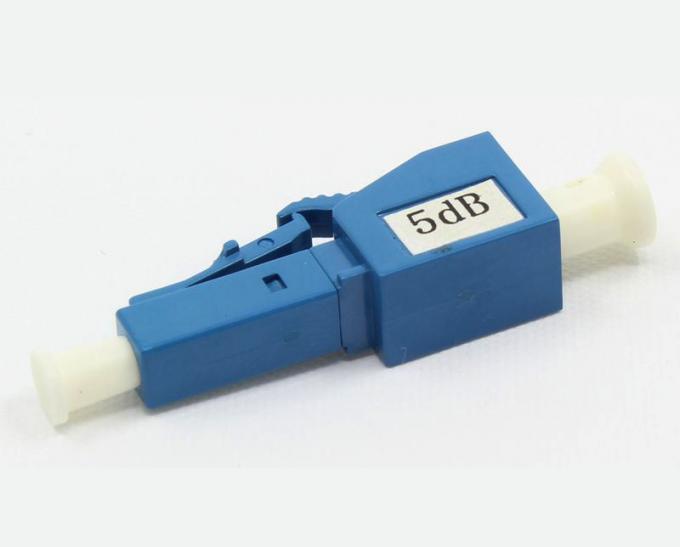

LC/UPC Female and Male Attenuator 1-30dB for optical fiber transmission system
| Type: | LC/UPC Female To Male | Attenuation value: | 3,5,10,15....dB |
| Material: | Plastic | ||
| High Light: | SC optical attenuator,st fiber optic attenuator |
||
LC/UPC Female and Male Attenuator 1-30dB for optical fiber transmission system
Descriptions:
- Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal.
- It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.
Features:
- High precision attenuation value
- Precision control of attenuation range
- Wide attenuation range
- Precision ceramic ferrule
- Plastic housing material
Application:
- Data Transmission Network
- CATV Fiber Optic Sensor
- Local Area Networks(LANs)
- Optic Instrumentation
- Testing instrumentation
- Passive optical networks
Specification:
|
Item |
Unit |
Parameter |
|
Operating Wavelength |
nm |
SM:1310/1550nm MM: 850 /1300nm |
|
Attenuation Range |
dB |
1-10dB(1dB step), 15, 20, 25, 30dB |
|
Return Loss |
dB |
PC:≥50 UPC: ≥55 APC: ≥60 |
|
Attenuation Tolerance |
dB |
≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) |
-
