12 cores LC/UPC SM 9/125 fiber optic bundle pigtail yellow LSZH out jacket

China 12 cores LC/UPC SM 9/125 fiber optic bundle pigtail yellow LSZH  out jacket supplier
12 cores LC/UPC SM 9/125 fiber optic bundle pigtail yellow LSZH  out jacket supplier 12 cores LC/UPC SM 9/125 fiber optic bundle pigtail yellow LSZH  out jacket supplier 12 cores LC/UPC SM 9/125 fiber optic bundle pigtail yellow LSZH  out jacket supplier

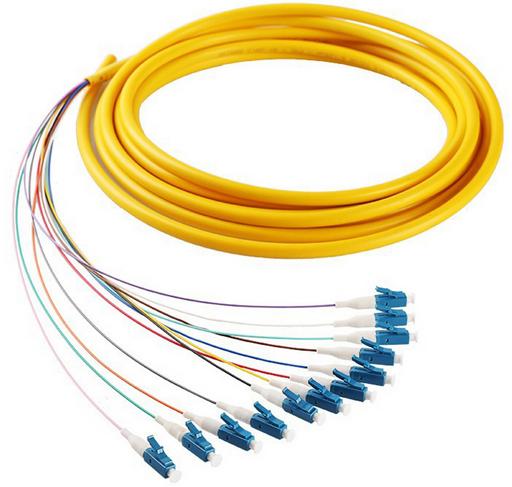

Large Image :  12 cores LC/UPC SM 9/125 fiber optic bundle pigtail yellow LSZH out jacket

Product Details:

Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: LC/UPC 12 cores Bundle pigtail

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: USD1.2-30/PCS
Packaging Details: PE bag
Delivery Time: 3-15 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 1 million connector / month
Contact Now
Detailed Product Description
Connector: LC/UPC Fiber Cores: 12
Length: Can Be Customized Material: LSZH

12 cores LC/UPC SM 9/125 fiber optic bundle pigtail,yellow LSZH out jacket

►Description:

Single-mode pigtail is yellow, there are two kinds of wavelength, 1310Nm and 1550Nm, transmission distance 10km and 40km respectively.

 ►Features:

High credibility and stability;
Fiber cores: 4, 6, 8, 12, 24, 48……
Joint Specification: FC, SC, ST, LC;
Cable material: PVC, OM1, OM2 or Om3 can be chosen
In Complying with customer's request, we could design and produce pigtails in all kinds of specifications     and models.


►Specification:

Item Unit FC,SC,LC ST,MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC UPC PC PC PC UPC PC PC UPC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310,1510 1310,1510 1310,1510 1310,1510
Exchengeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable Diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9


►Applications:

Telecommunication network;
Computer LAN;
Cable television network;
Connection of optical cable and light receiver.



►Order information:

Fiber cores: 1, 4, 8, 12, 16... cores
Diameter:0.9, 2.0, 3.0mm
Length:1m, 2m, 3m to 120m
Fiber: SM/OM1/OM2/OM3/OM4
Material of jacket: PVC/LSZH/OFNR
Connector: FC, SC, ST, LC, MU, MTJR, MPO, E2000
