Aqua color 8 core / 12 core / 24 core Fiber Optical MPO/MTP Patch cord / MPO Connector

China Aqua color 8 core / 12 core / 24 core Fiber Optical MPO/MTP Patch cord / MPO Connector supplier
Aqua color 8 core / 12 core / 24 core Fiber Optical MPO/MTP Patch cord / MPO Connector supplier Aqua color 8 core / 12 core / 24 core Fiber Optical MPO/MTP Patch cord / MPO Connector supplier Aqua color 8 core / 12 core / 24 core Fiber Optical MPO/MTP Patch cord / MPO Connector supplier Aqua color 8 core / 12 core / 24 core Fiber Optical MPO/MTP Patch cord / MPO Connector supplier

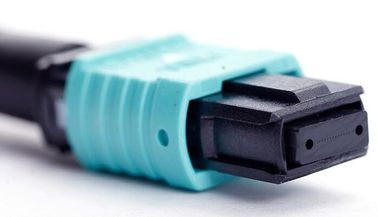

Large Image :  Aqua color 8 core / 12 core / 24 core Fiber Optical MPO/MTP Patch cord / MPO Connector

Product Details:

Place of Origin: Shenzhen
Brand Name: Senko / US CONEC / Furukawa Connector
Model Number: MPO connector

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: 1pcs/PE bage,box
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 50K
Contact Now
Detailed Product Description
Boot Type: 0.9 Fan-out, 3.0/3.6mm Round ,ribbon Color: Aqua,green ,yellow,beige
Available: Multimode And Single Mode

8core/12core/24core Fiber Optical MPO/MTP Patch cord/MPO Connector



Description



1. MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching.



Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted
in 1U or 4U 19” multislot chassis.



MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical performance and reliability.

Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.



PARAMETER SM MM UNIT
Insertion Loss Low Loss Type:≤0.35 Low Loss Type:≤0.35 dB
Standard Type:≤0.75 Standard Type:≤0.75
Return Loss PC Type:≥45 PC Type:≥20 dB
APC Type:≥55 N/A
Durability Change After 500 Times Mating/Demating<0.3 Change After 500 Times Mating/Demating<0.3 dB
Test Wavelength 850/1310 850/1310 nm
Operating Temperature -40 to +80 -40 to +80


Features:


*Suitable for MPO/MTP application
*High-density and small design;Easy and fast installation

*12 and 24 fiber versions – 12 LC (Duplex) / SC (Simplex) optical parts

*Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and Single mode(OS1/2) fiber.

*Factory-terminated and -tested cable and apparatus for instant field connections with guaranteed quality and performance.
*Metallic shell with high strength protect the inner fibers effectively
*Supports easy reconfiguration for moves, adds, and changes



Application:



1.Asynchronous Transmission Mode(ATM) Package for 100PCS :

2.Passive optical networks (PON)

3.Fiber to The Home (FTTH) Package dimensions : 46cm*33cm*23 CM

4.Local Area Networks (LAN)

5.Cable Television (CATV)

6.Test Equipment

Aqua color 8 core / 12 core / 24 core Fiber Optical MPO/MTP Patch cord / MPO Connector
