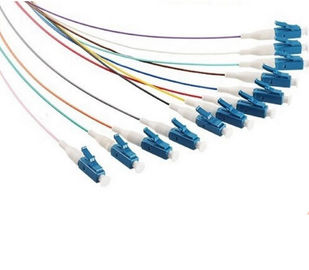

12 cores LC/UPC SM 9/125 fiber optic bundle pigtail yellow LSZH out jacket
| Connector: | LC/UPC | Fiber cores: | 12 |
| Length: | Can Be Customized | Material: | LSZH |
| High Light: | fiber optics cable connectors,fiber optic fc connector |
||
12 cores LC/UPC SM 9/125 fiber optic bundle pigtail,yellow LSZH out jacket
►Description:
Single-mode pigtail is yellow, there are two kinds of wavelength, 1310Nm and 1550Nm, transmission distance 10km and 40km respectively.
►Features:
•High credibility and stability;
•Fiber cores: 4, 6, 8, 12, 24, 48……
•Joint Specification: FC, SC, ST, LC;
•Cable material: PVC, OM1, OM2 or Om3 can be chosen
•In Complying with customer's request, we could design and produce pigtails in all kinds of specifications and models.
►Specification:
| Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
| Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
►Applications:
•Telecommunication network;
•Computer LAN;
•Cable television network;
•Connection of optical cable and light receiver.
►Order information:
•Fiber cores: 1, 4, 8, 12, 16... cores
•Diameter:0.9, 2.0, 3.0mm
•Length:1m, 2m, 3m to 120m
•Fiber: SM/OM1/OM2/OM3/OM4
•Material of jacket: PVC/LSZH/OFNR
•Connector: FC, SC, ST, LC, MU, MTJR, MPO, E2000
-
