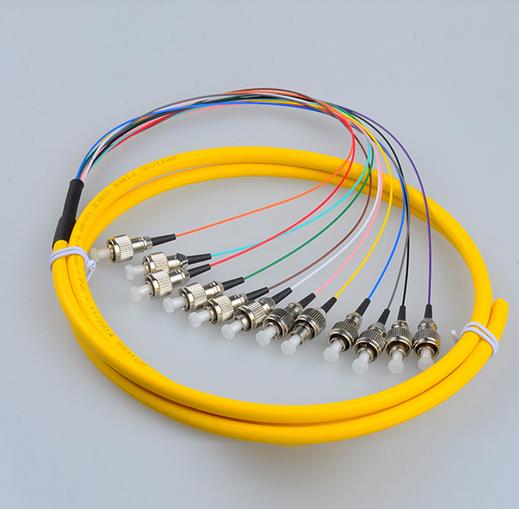

12 Cores FC/UPC Singlemode G657A2 PVC Breakout Optical Fibre Pigtail
| Fiber cores: | 12 | Length: | Can Be Customized |
| Fiber type: | G657A2 | Material of out jacket: | PVC |
| High Light: | optical fibre pigtail,fiber optic fc connector |
||
12 cores LC/UPC SM 9/125 fiber optic bundle pigtail,yellow LSZH out jacket
►Materials
•Dust caps: LDPE, transparent (RoHS)
•Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
•Inner frame: PBT, white (RoHS)
•Ferrule: Zirconium oxide ceramic material, white (RoHS)
•Ferrule’s handle: Copper (C3602), Nickel age (RoHS)
•Mechanical spring: Stainless steel (RoHS)
•Locating snap ring: Copper alloy (HPD59-1), nickel age (RoHS)
•Snap ring: Aluminum alloy 6063 (RoHS)
•Ring: Copper alloy (HPD62), nickel age (RoHS)
•Boot: Nylon or PBT, UPC/Blue, APC/Green, MM/Beige
•Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNR, etc.
►Specification:
| Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
| Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
►Applications:
•Telecommunication network;
•Computer LAN;
•Cable television network;
•Connection of optical cable and light receiver.
►Order information:
•Fiber cores: 1, 4, 8, 12, 16... cores
•Diameter:0.9, 2.0, 3.0mm
•Length:1m, 2m, 3m to 120m
•Fiber: SM/OM1/OM2/OM3/OM4
•Material of jacket: PVC/LSZH/OFNR
•Connector: FC, SC, ST, LC, MU, MTJR, MPO, E2000
-
