| Item: | FC-LC Hybrid Rectangle Adapter | FC Cap Color: | Red / Green |
|---|---|---|---|
| LC Cap Color: | White | Shape: | Rectangle |
| Materials: | Zinc Alloy To Plastic | Type: | Simplex |
| Fiber Type: | Singlemode / Mutilmode | Cap Shape: | Round Or Square |
| Highlight: | Simplex Lc To Fc Adapter,Female Hybrid Simplex adapter,Singlemode Hybrid Lc To Fc Adapter |
||
Rectangle Female To Female Hybrid Simplex Lc To Fc Adapter
Metal Hybrid FC-LC Fiber optic Adapter , Zinc alloy Metal to Plstic material Singlemode Simplex Coupler
Description:
Fiber optic adapter (also fiber optical coupler) is available in single mode UPC and multimode SPC to sastify to connect single mode or multimode patch cable.
The FC-LC Hybrid fiber optic adapters inexpensively adapt connector interfaces to new equipment, upgrade distribution panels and eliminate the need to re-terminate cable assemblies.
Features:
High size precision
Good repeatability
Good changeability
Low connection loss
Good temperature stabilization
High wearable
Sleeve material: Zirconia
Housing Material: High Quality Plastic/metal
Application:
Telecommunication Network
Testing Equipment
Local Area Network(LAN)
CATV
Engineering Recovery
FTTH
Connect Different Types of Ceramic Ferrule Bores
Specification:
| Connector Type | LC,FC,SC,MU,ST,MTRJ,Hybrid | |
| Fiber Type | Singlemode | Multimode |
| Insertion Loss | ≤0.2dB | |
| Return Loss | PC≥45dB;UPC≥50dB;APC≥60dB | ≥30dB |
| Durability | ≤0.2dB,after 1000times | |
| Operation Temperature | -40℃~+75℃ | |
| Storage Temperature | -40℃~+85℃ | |

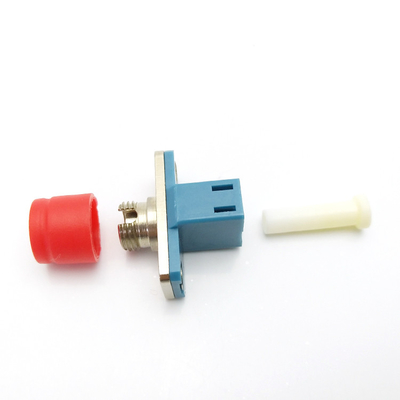

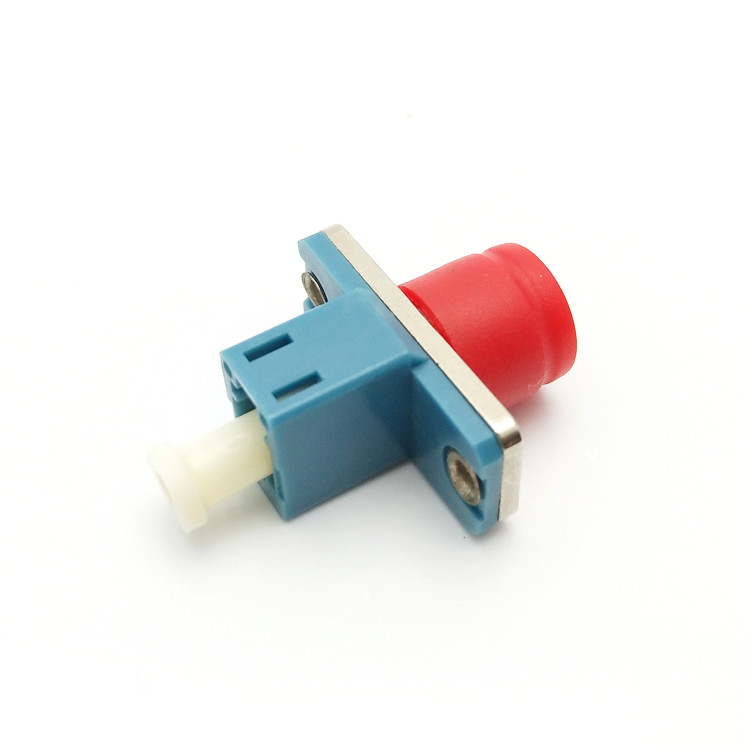

Drawing and Pictures:
