PLC Rack Mount Patch Panels

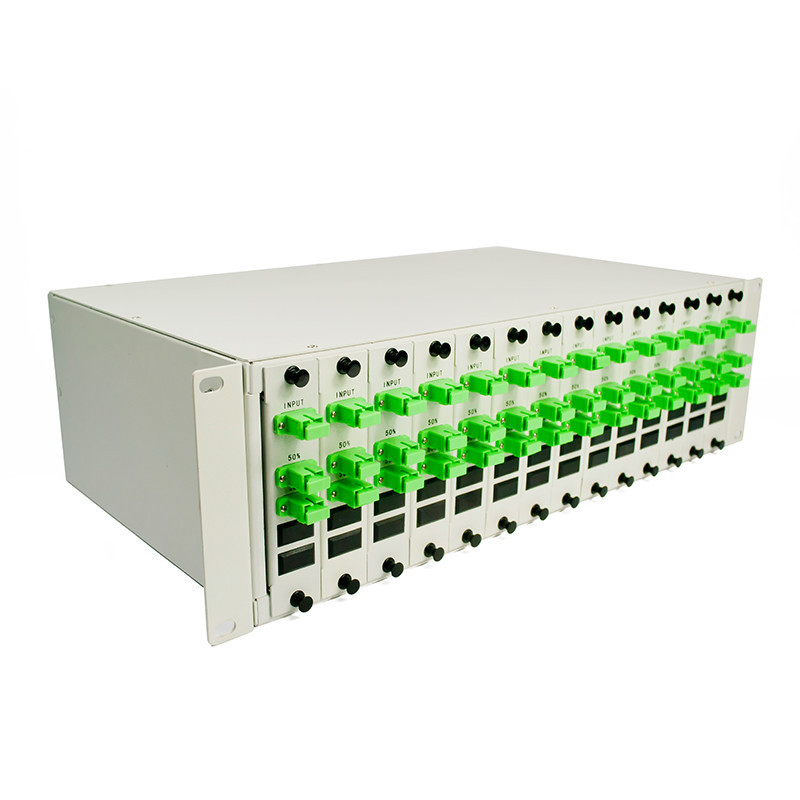

Large Image : PLC Rack Mount Patch Panels

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	CY COM
Certification:	ISO9001:2015 ;ROSH

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Packaging Details:	Carton and Wooden
Delivery Time:	4-8 days
Payment Terms:	Western Union, T/T
Supply Ability:	2K/Month

Contact Now

Detailed Product Description

Splitter Type:	1x2 /1x4 / 1x8 Splitter	Apply Port:	SC/FC/LC/ST
Capacity:	14PCS Spliiter Patch Panel	Height:	3U
Material:	Aluminum/Cold-roll Steel	Color:	Black / Gray / White
Highlight:	PLC Rack Mount Patch Panels , LGX Rack Mount Patch Panels , 1x8 Rack Mount Patch Panels

3U 19" Fiber Optical 1x2 1x4 1x8 LGX PLC Splitter Patch Panel /Rack Mount Fiber optic Chassis

Description:

Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.

Application:

FTTx Systems

Digital, hybrid and AM-Video systems

LAN,WAN and Metro Networks

CATV systems

Other applications in fiber optic systems

Features:

Low Insertion loss and Low PDL

Uniform power splitting

High reliability

Excellent environmental stability

Compact size and various package

Specification:

Parameter/Type	Nx2(N=1or2)	Nx4(N=1or2)	Nx8(N=1or2)	Nx16(N=1or2)	Nx32(N=1or2)	Nx64(N=1or2)
Fiber	9/125 um SMF-28e or customer appoint
Operating Wavelength(nm)	1260~1650(nm)
Insertion Loss	≤3.9dB	≤7.1dB	≤10.3dB	≤13.3dB	≤16.3dB	≤19.8dB
Loss Uniformity(dB)	≤0.6dB	≤0.6dB	≤0.8dB	≤1.2dB	≤1.5dB	≤2.0dB
Polariation Dependent Loss	≤0.15dB	≤0.15dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.3dB
Return Loss	UPC≥50dB APC≥60dB
Directivity	≥55dB
Working Temperature(℃)	-40°C to +85°C
