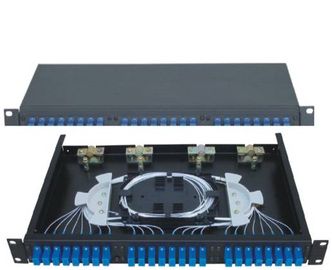

SC24 Rack-Mounted Fiber Optic Patch Panel apply in working as distribution box
| High Light: | fiber termination panel,fiber distribution panel |
||
SC24 Rack-Mounted Fiber Optic Patch Panel apply in working as distribution box
Description:
· Applicable in the branch connection of fiber termination, working as distribution box
· 19’’standard structure, rack mounted
· available for the installation of FC, SC, ST, LC adaptors
Order Guide
|
Type |
Dimension(mm) |
Max capacity cores |
Remark |
|
GPZ/RM-SC12 |
480*250*1U |
12 |
The body is made of cold rolled steel sheet, with electrostatic spraying.We can install adaptors for you, available for FC, ST, SC, LC .
|
|
GPZ/RM-SC24 |
480*250*1U |
24 |
|
|
GPZ/RM-SC48 |
480*250*2U |
48 |
|
|
GPZ/ RM-FC12 |
480*250*1U |
12 |
|
|
GPZ/ RM-FC24 |
480*250*1U |
24 |
|
|
GPZ/ RM-FC48 |
480*250*2U |
48 |
|
|
GPZ/ RM-ST12 |
480*250*1U |
24 |
|
|
GPZ/ RM-ST24 |
480*250*1U |
24 |
Packing information
|
Type |
Net size |
Net weight |
Packing size |
Packing weight |
No./carton |
|
GPZ/RM-SC12 |
465*285*75mm |
2.6kg |
485*425*305 |
14.2kg |
5 pcs |
|
GPZ/RM-SC24 |
465*285*75mm |
2.6kg |
485*425*305 |
14.2kg |
|
|
GPZ/RM-SC48 |
465*285*125mm |
3.8kg |
675*485*305 |
21.0kg |
|
|
GPZ/RM-FC12 |
465*285*75mm |
2.6kg |
485*425*305 |
14.2kg |
|
|
GPZ/RM-FC24 |
465*285*75mm |
2.6kg |
485*425*305 |
14.2kg |
|
|
GPZ/RM-FC48 |
465*285*125mm |
3.8kg |
675*485*305 |
21.0kg |
|
|
GPZ/RM-ST12 |
465*285*75mm |
2.6kg |
485*425*305 |
14.2kg |
|
|
GPZ/RM-ST24 |
-
