Product Details:
Payment & Shipping Terms:
|
| Item: | Press-fit Elastic Iron Adaptor | Color: | Blue / Green / Customized |
|---|---|---|---|
| Structure: | Flange Or Flangeless | Material Of Fit Pin: | Metal |
| Ferrule Material: | Ceramic | Cap Color: | Black / Blue / Green / Customiaed |
| Type: | UPC / APC | Application: | PCB Circuit Board |
| Highlight: | SGS APC Fiber Optic Coupler,SGS UPC Fiber Optic Coupler,SGS UPC APC Optical Coupler |
||

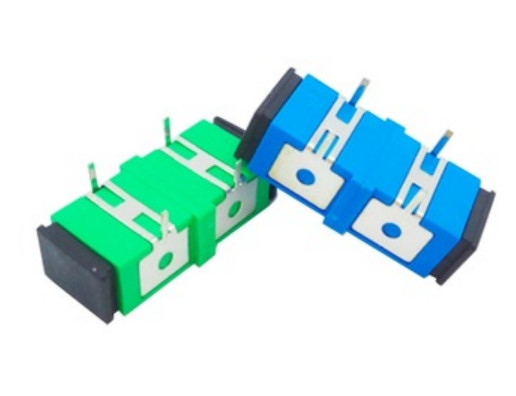

Press-fit Elastic iron adaptors ,Fiber optic coupler used for PCB circuit board Metal material fit pin
Description:

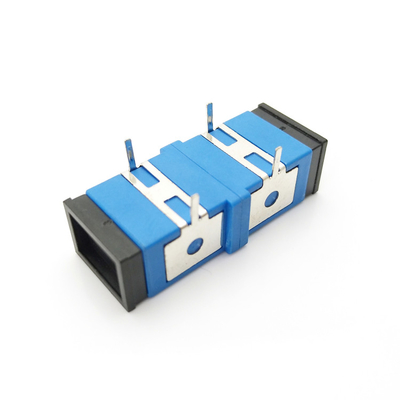

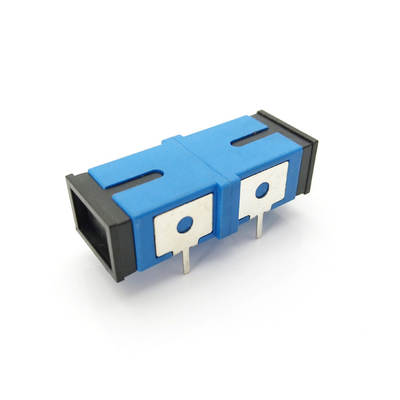

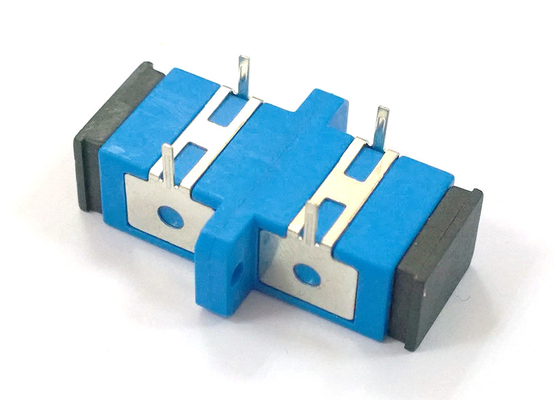

SC Fiber Optic Adapter with Press-fit Elastic iron used For PCB circuit board is a fiber optic connector on the activities of linking components.These ODM adapter widely used in optical distribution frames (ODF), and optical fiber communications equipment, instrumentation, performance is stable and reliable
Features:
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC,APC,UPC optional
Used For PCB circuit board
The lengthe of fit pin can be customized
Application:
1. CATV system
2. Optical fiber communication systems
3. Optical fiber data transmission
4. Building network access
5. Cabling system, ODF
6. FTTX and FTTH applications
7. Test equipment
Specification:
1. Low insertion loss and high return loss
2. High precision of mechanical dimensions
3. Great repeatability
4. High temperature stability
5. High interchangeability
6. All parts compliant with ROHS
7. Ceramic sleeves
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | |
| Return Loss | ≥50dB | ≥65dB | ≥40dB |
| Interchangeability | ≤0.2dB | ||
| Durability | ≤0.2dB (1000 times) | ||
| Repeatability | ≤0.1dB | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
Packing and Shipment Reference:
| Packing | 50 pcs / plastic box ,3000 pcs /box |
| Measurement | 46.5*38.5*23 CM |
| G.W. | 15kgs/carton |
| Shipment |
By Express:Fedex / UPS / TNT/ DHL / SF ect By sea By Air |
Drawing:
