Product Details:
Payment & Shipping Terms:
|
| Band Name: | Fiber Optical Cable Stripper Loose Tube Stripping Tool | Model Number: | Cable Jacket Slitter |
|---|---|---|---|
| Cut Type: | Slit | Function: | Slits The PVC Cable Jacket Into Two Halves Before Crimping |
| Fiber Cable Diameter: | Up To 3.3mm | Application: | FTTH FTTB FTTX Network |
| Highlight: | 3.3mm Cable Jacket Slitter,FTTH fibre optic cable stripping tools,3.3mm FTTH fiber optic cable stripper |
||

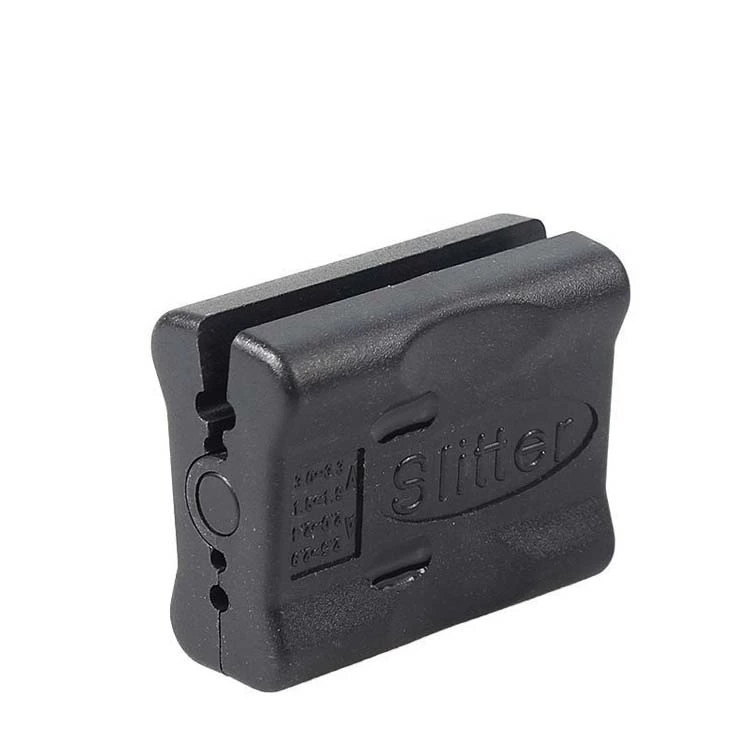

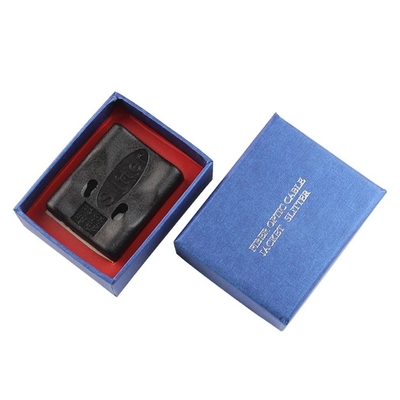

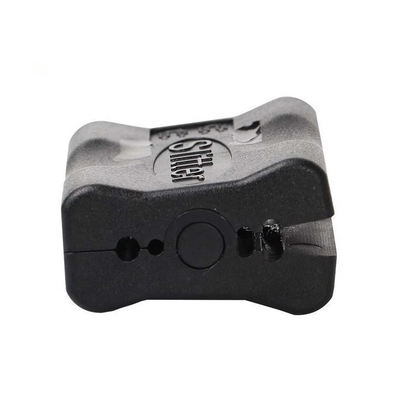

Fiber Optical Cable Stripper Loose Tube Stripping Tool Cable Jacket Slitter
Description:
New Fiber Cluster/Loose Tube/Cable Jacket Slitter is an efficient and indispensable tool for fiber optic cable termination. It easily slits the PVC cable jacket into two halves before crimping. In both field and plant applications, time is saved and consistency is resulted with this precise and innovative tool.
Designed to provide easy access to optical fibers in loose buffer tubes 1.5mm-3.3mm diameter. With 4 precision grooves buffer tube slitting is done without damage to the fiber. The blades are replaceable.
Groove sizes:
1.5-1.9mm
2.0-2.4mm
2.5-2.9mm
3.0-3.3mm
| Specifications | |
| Model | 15 |
| Cut type | Slit |
| Cable type | Loose tube, Jacket |
| Cable diameter | 1.5-3.3mm |
| Features | 4 precision grooves |
| Weight | 0.11lbs (50g) |
Step by step instructions:
1. Choose appropriate groove according to the diameter of the cable to be slit
2. Put the cable into the groove,pay attention to the blade's position on the cable with the length to be slit in mind
3. Close the slitter and hold it firmly with one hand,then pull the cable out with the other hand
4. Check the processed segment of the cable,there should be two rips on the jacket which completely separate the jacket into two halves
