Product Details:
Payment & Shipping Terms:
|
| Item: | Auto Shutter Adapter | Color: | Green / Blue/ Begie/ Aqua / Customized |
|---|---|---|---|
| Structure: | Flange Or Flangeless | Materials: | PEI+ABS |
| Ferrule Material: | Ceramic | Cap Color: | Black / Blue / Green / Customiaed |
| Type: | APC / UPC | Application: | CATV, FTTX Network,LAN,Telecommunication |
| Highlight: | APC Flangeless Fiber Optic Coupler,APC Flangeless Fiber Optical Coupler,UPC Flangeless Optical Coupler |
||
Single mode fiber coupler,Plastic fiber optical adapter with auto shutter,black dust cap
Description:
Fiber optic adapter is also called fiber optic coupler. It contains the interconnect sleeve, that holds the two ferrules together.It is used to provide a cable to cable fiber connection.Choose proper type according to the splice of optical fiber active connector.
Features:
SC mode used pluggable tight locking structure
UPC or APC Optional
SM or MM Optional
With/Without flange Optional
Simplex , Duplex or Quad Optional
Zirconia Sleeve ,Compact design
Low insertional loss, High return loss
Comply with IEC, Telcordia GR 326 and JIS standard
Application:
CATV System
Telecommunication networks
Test equipment
Local Area Networks(LANs)
Data processing networks
Specification:
| Parameter | SC Adapter | |
| Mode | S.M(Zirconia) | M.M(Metal) |
| Typical Insertion Loss (dB) | <=0.2 | <=0.3 |
| Return Loss(dB) | >=45 | |
| Mating Durability(500times) | Additional Loss<=0.1dB,Return Loss Variability<5dB | |
| Temperature Stability (-45℃~85℃) | Additional Loss<=0.2dB,Return Loss Variability<5dB | |
| Operating Temperature | -10 ℃~ +75℃ | |
| Storage Temperature | -40℃~+85℃ | |

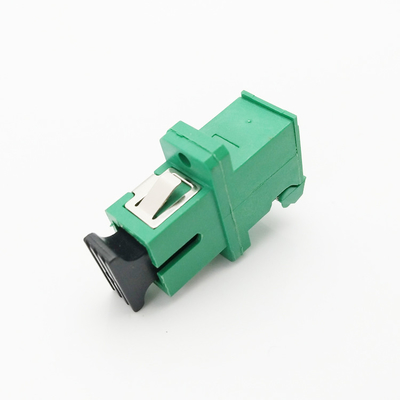

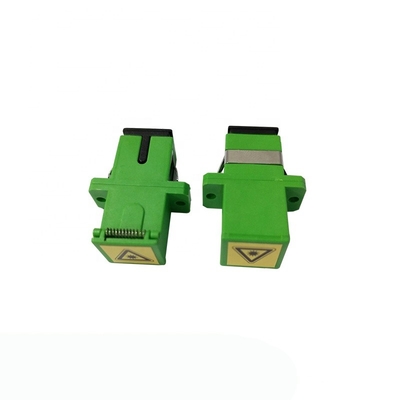

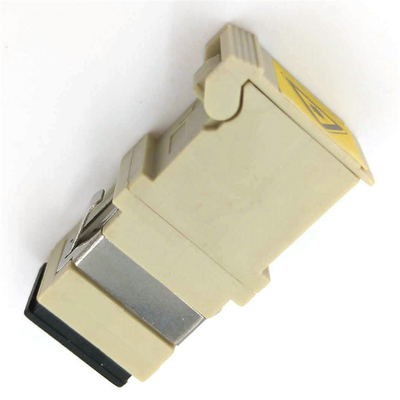

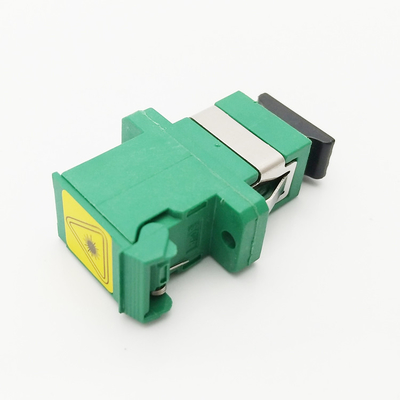

Pictures and Drawing:
