Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange

Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange
Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange

Large Image :  Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange

Product Details:
Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: SC/APC DX adapter
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD0.12-0.24/PCS
Packaging Details: Plastic Box
Delivery Time: in 5-10 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 4.5 MIllion PCS / Month
Contact Now
Detailed Product Description
Color: Green Structure: Duplex
Certification: ISO9001:2008 Material: RoHS
High Light:

fiber optic coupler

,

optical fiber adapter



Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange



Products introduction:


Fiber optic adapter is used for the connection and coupling between fiber active connectors. Choose proper type according to the splice of optical fiber active connector.Good agglomeration technic to ensure the best quality,high intensity and stability.



Features:

  • Low insertion loss;
  • Good repeatability and interchangeability;
  • Good environmental stability.



Specification:



rameter Unit LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, MTRJ E2000
SM MM SM MM SM
PC UPC APC PC PC UPC PC PC APC
Insertion Loss (Typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return Loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Exchangeability dB ≤0.2 ≤0.2 ≤0.2
Repeatability dB ≤0.2 ≤0.2 ≤0.2
Durability Time ＞1000 ＞1000 ＞1000
Operating Temperature ℃ -40~75 -40~75 -40~75
Storage Temperature ℃ -45~85 -45~85 -45~85



Ordering Information:

  • For example:FC/UPC-SM-SX-Single "D" Type
  • Connector type: FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
  • Ferrule end-face: PC,UPC,APC
  • Core type: Single-mode(SM:9/125μm), multimode(MM:50/125μm or 62.5/125μm)
  • Appearance: with ear type, no ear type;
  • Material: copper alloy, zinc alloy, plastic.

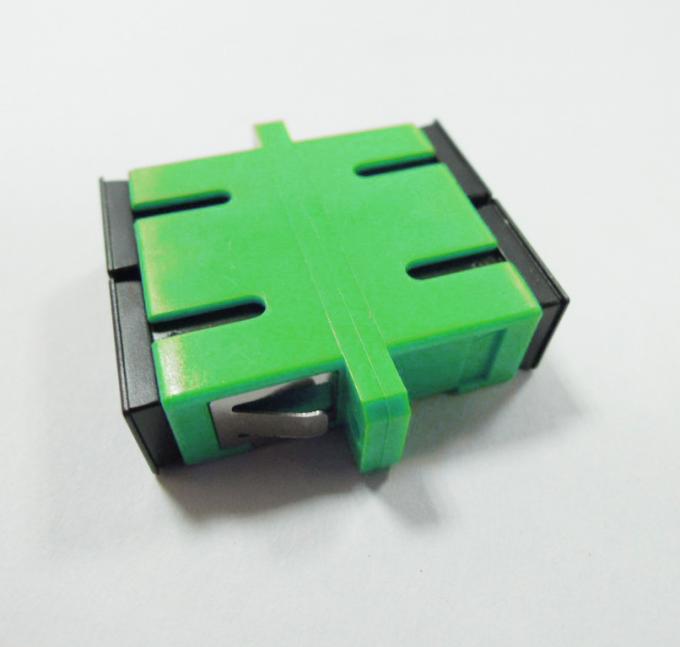

Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange 0

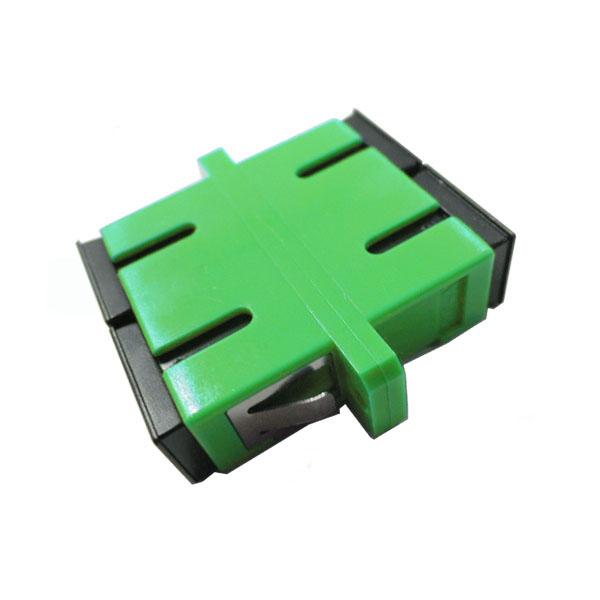

Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange 1
