Product Details:
Payment & Shipping Terms:
|
| Item: | Quad LC / UPC Adapter | Color: | Blue |
|---|---|---|---|
| Structure: | Louver | Test: | 100% |
| Ferrule Material: | Ceramic | Fiber Type: | Single Mode |
| Type: | Plastic Cilp | Cap Color: | White |
| Highlight: | LC UP Optic Coupler,LC UPC Fiber Coupler,Quad Fiber Optic Coupler |
||
Flange Type Singlemode LC UPC Quad Fiber Optic Coupler
Quad LC / UPC Fiber Optical Coupler with louver Plastic clip Singlemode Blue optic adapter
Description:
LC fiber optic adapters are flange type, single mode adapters are with zirconia sleeve while multimode fiber adapters are with bronze sleeve.
LC fiber optic adapter Low insertion loss, high return loss Good compatibility High precision of mechanical dimensions High reliability & stability Ceramic or Bronze Sleeve PC, APC, UPC optional Simplex / Duplex.
Features:
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PCAPCUPC optional
Simplex / Duplex
Application:
Telecom, Access Network
Optical Fiber CATV
Terminal of The Devices and Multimedia
Testing and Medical Devices
Optical Fiber LAN and Access Network
Industry and Military Applications
|
SPECIFICATIONS |
||||
| Insertion Loss | <0.20 dB | |||
| Plug and unplug force | 200-600(g/f) | |||
| Durability | plug and unplug 1000times | |||
| Operating Temperature | -40+75 | |||
| ORDERING OPTIONS | ||||
| Housing Material | Sleeve Material | Channel | Application | |
| Nickel plated brass | Zirconia | Simplex | SC/PC | |
| copper | duplex | SC/APC | ||

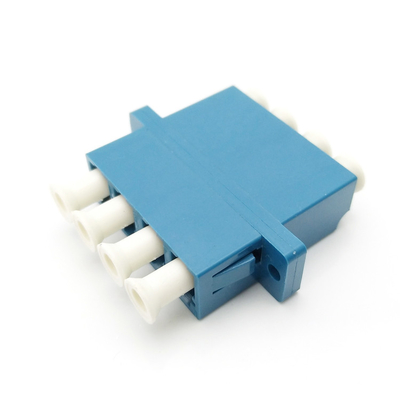

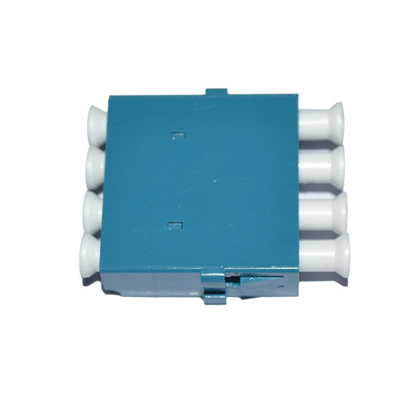

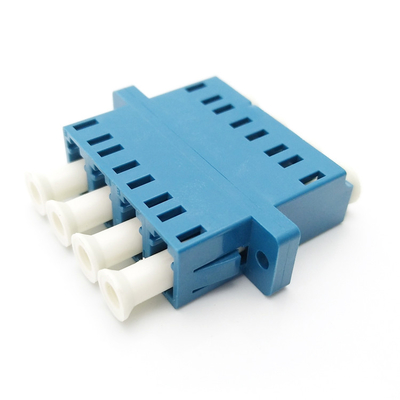

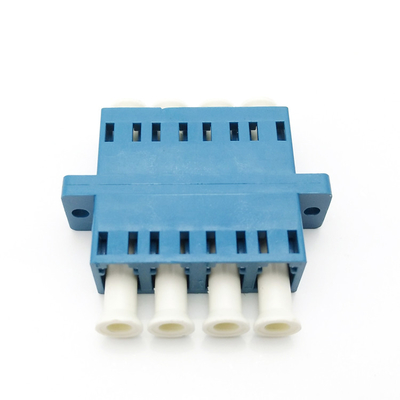

Pictures and Drawing:
