Product Details:
Payment & Shipping Terms:
|
| Length: | 1m Or Customized | Certification: | RoHS,ISO9001 |
|---|---|---|---|
| Connector: | LC SC FC | Cable Diameter: | 0.9mm/2.0mm/3.0mm |

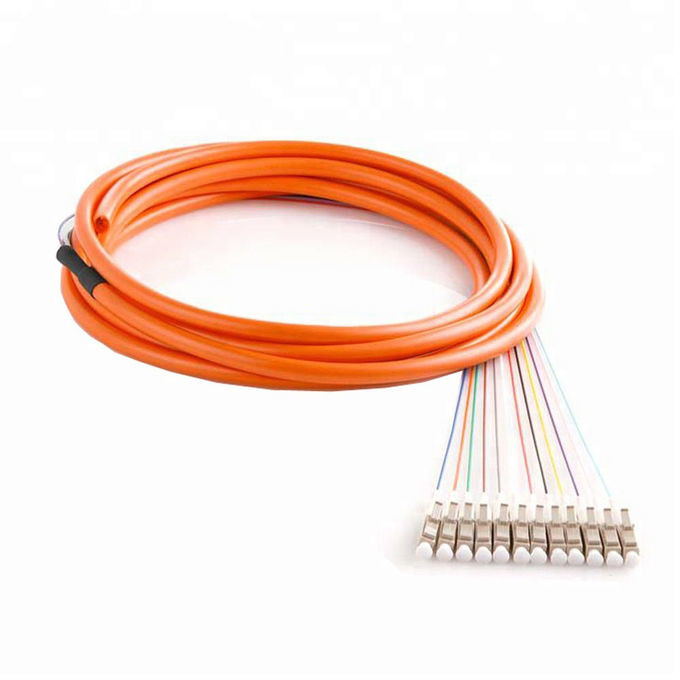

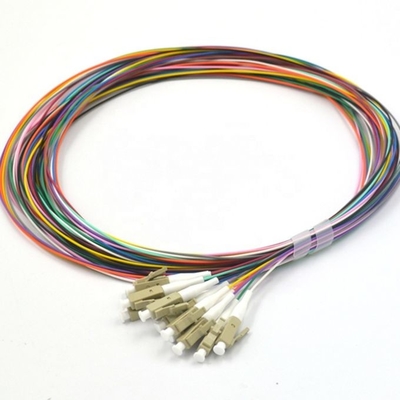

| Insertion Loss: | IL<0.3db | Product Name: | High End Singlemode 12 Core Fc Pc Optical Fiber Pigtail |
| Highlight: | OM2 Fiber Optic Pigtail,OM1 Fiber Optic Pigtail,2.0mm Fiber Optic Pigtail |
||
- Telecommunication networks
- Data transmission networks
- Computer networks (Gigabit Ethernet, SoNet, etc. )
- Cabling system
- Interconnection of fiber optic transmission equipments
- ODF of optical transmission systems
- FTTX applications
Parameters
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
