Magenta 12 Colored SC MM OM4 Fiber Optic Pigtail

Large Image : Magenta 12 Colored SC MM OM4 Fiber Optic Pigtail

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	CY COM
Certification:	ISO9001:2015 , ISO14001:2015, RoHS,SGS
Model Number:	SC LC FC

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiable
Packaging Details:	PE bag or plastic box and Carton box
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30000pcs per day

Contact Now

Detailed Product Description

Certification:	RoHS,ISO9001	Connector:	SC,FC,LC
Fiber Count::	4/6/8/12 Fibers	Application:	FTTH FTTB FTTX Network,cabling System
Cable Diameter:	0.9/2.0/3.0mm	Color:	Magenta
Highlight:	OM4 Fiber Optic Pigtail , SC MM OM4 Pigtail , 12 Colored OM4 Pigtail

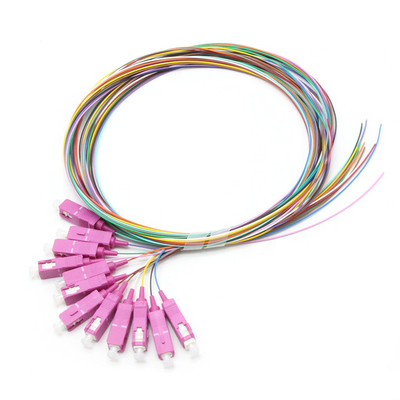

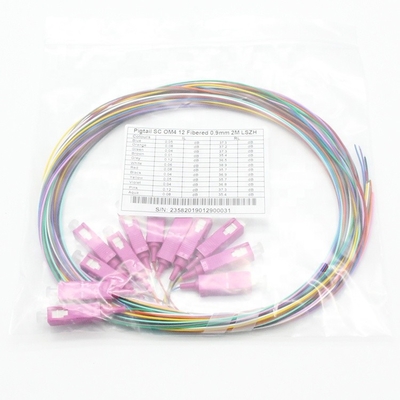

Magenta 12 Colored SC MM OM4 Fiber Optic Pigtail

High quality China-made SC MM OM4 12 colored with Magenta connector Fiber pigtail

Description:

12 fibers/Colored pigtail

It’s consists of 12pcs of Simplex pigtail.12pcs is a unit. Meets Telcordia GR-326 Core and ROHS requirements.

The connector could be SC, FC, LC, ST, MU, and E2000etc.

The cable could be G652D, G655, G657, OM1, OM2, OM3, OM4 etc.

The cable size could be 0.25, 0.9,

There are 12 colors for your option.

Both 250um and 900um is same colored, easy to identify and make right splice.

Tight buffer, semi-tight buffer. Loose buffer are available

Features :

Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss

Good in repeatability and exchangeability

High dense connection, easy for operation

Application:

High density wiring system.
40G and 100G system, QSFP module.
Data communication network
Optical system access network
Storage area network fiber channel

Wiring in communication base station and distribution case.

Parameters

Parameter	LC,SC,ST,FC
	SM		MM
	UPC	APC	UPC
Operating Wavelength(nm)	1310/1550		850/1300
Insertion Loss(dB)	≤0.20	≤0.20	≤0.20
Return Loss(dB)	≥55	≥65	≥35
Repeatability Loss(dB)	≤0.1
Interchangeability Loss(dB)	≤0.20
Repeat Piug-pull Times	≥1000
Tensil Strength(N)	≥100
Durability Loss(dB)	≤0.20
Operating Temperature(℃)	-40℃~ +75℃
Storage Temperature(℃)	-40℃~85℃
