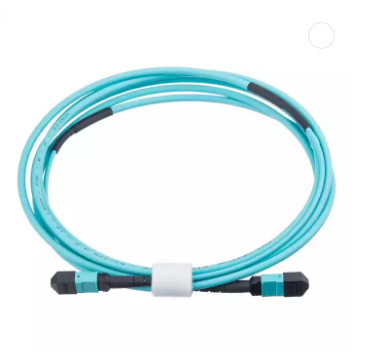

MTP MPO Fiber Optical Patch Cable 8 Fiber Multimode Fiber Optic Core

MTP MPO Fiber Optical Patch Cable 8 Fiber Multimode Fiber Optic Core
MTP MPO Fiber Optical Patch Cable 8 Fiber Multimode Fiber Optic Core
video play

Large Image :  MTP MPO Fiber Optical Patch Cable 8 Fiber Multimode Fiber Optic Core

Product Details:
Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: MPO
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: PE bag
Delivery Time: 3-15 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 1 million connector / month
Detailed Product Description
Product Name: MPO Fiber Optic Patch Cord Fiber Type: OM3/OM4
Connector Type: Female /Male Cable Shape: Round / Ribbon
Cable Material: LSZH / OFNP / PVC Cable Color: Aqua / Violet / Yellow
High Light:

mpo patch cable

,

mpo fiber patch cord

MTP MPO Fiber Optical Patch Cable 8 Fiber Multimode Fiber Optic Core



Description
MPO/MTP trunk cables are used to interconnect cassettes, panels or ruggedized MPO fan-outs, spanning MDA, HAD and EDA zones, and easy to rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration.
MPO/MPT trunk cables using a compact and rugged microcable structure, according to different colors divided into SM, MM and 10G MM. The fiber ranges from 12 to 144, MTP polarity options are TIA way is Style A(up), Style B(down) and Style C(up/up). The cable length belongs to a custom product, please kindly email your requirements to us!



Features
· With 12-fiber and 24-fiber MPO/MTP connector standard
· Available in OS1/2, OM2, OM3 and OM4
· Available in FC,LC, SC, ST, MU, and MTP
· Interface polished type has PC, UPC and APC
· Available in 12 / 24 / 36 / 48 / 72 / 96 / 144-fibers
· 100% factory tested
· Discrete connectors are heat-cured and use ceramic ferrules and sleeves

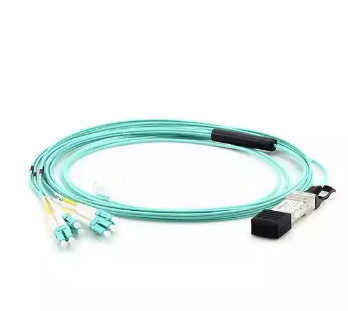

· Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
· Customized for length, staggering, connector type, breakout style, fiber count, and labeling fiber



Applications:
◆ Data Centre Infrastructure
◆ Storage Area Network-Fiber Channel
◆ Emerging 40 & 100Gps Protocols



Pre-terminated MPO/MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.





MTP/MPO Cables

MTP/MPO Cable has the advantages of shorter installation times, tested and guaranteed quality and greater reliability. It has several different kinds of types.


Trunk Cables

Trunk cables serve asa permanent link connecting the MTP/MPO modules to each other. They are available with 12, 24, 48 and 72 fibers. Their ends are terminated with 12-fiber or 24-fiber MTP/MPO connectors according to customer's choice. These trunk cables like 12 fibers MPO trunk cable could help to create a simple,cost- effective 40G networking by installing a structured cabling system. MTP/MPO trunk cable requires greater care in planning but has a number of advantages, such as higher quality, minimal skew, shorter installation time,better protection, smaller volume of cable and lower total costs.



Specifcation:



Model
SM
MM
Connector Fiber Count
8/12/24 core
Polish
PC/APC
Housing Color
standard(green) Elite(yellow)
standard (green)
Standard(Beige) Elite(Auqa)
Insertion Loss Standard Type
less than 0.7dB
less than 0.5dB
Insertion loss Elite type
less than 0.35dB
less than 0.3dB
Return Loss(dB)
PC>50dB/APC>60dB
>30dB
Durability(500matings)
less than 0.2dB

Test Wavelength
1310/1550nm
850/1300nm
