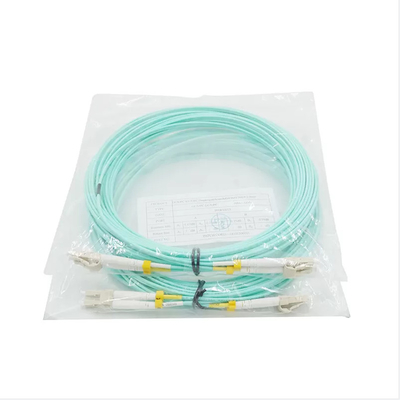

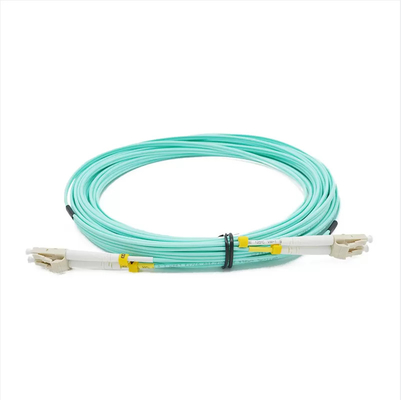

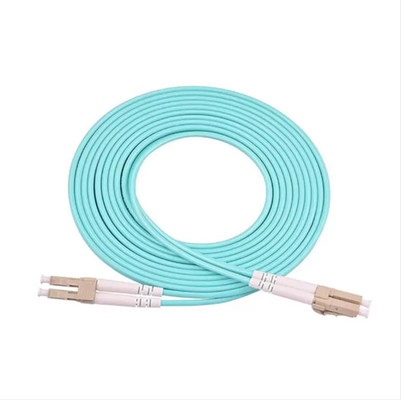

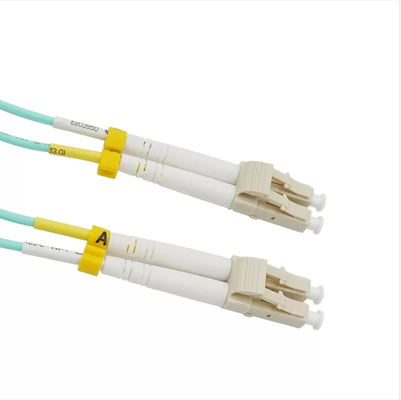

multimode lc lc connector om4 50/125 duplex jumper lszh jacket 1m fiber optic patch cord
| Product Name: | LC LC Patch Cord | Cable Color: | Aqua |
| Length: | 1M/2M/3M...customize | Insertion Loss: | ≤0.3dB |
| Fiber Cores: | 2cores | Application: | FTTH Solution |
| High Light: | fiber optic patch cable,fiber patch cord |
||
multimode lc lc connector om4 50/125 duplex jumper lszh jacket 1m fiber optic patch cord
A patch cord is a fiber optic cable used to attach one device to another for signal routing.The OM4 50/125 multimode fiber
opticcables compliant to ISO/IEC 11801 standards. They are used for 10Gbps networks to meet the requirement of continuous growing of high data rates.
*Good exchange ability.
*Support 10 Gigabit data transmitting rates.
*MM cables type.
|
Parameter
|
Unit
|
Standard & Requirement
|
|
Insertion Loss
|
dB
|
≤ 0.20
|
|
Changeability
|
dB
|
≤ 0.20
|
|
Radius of Curvature
|
nm
|
10 ≤ r ≤25
|
|
Curvature Eccentricity
|
um
|
<50
|
|
Fiber Core Undercut
|
nm
|
<50
|
|
Insertion Loss Change
|
dB
|
< 0.1
|
|
Return Loss Change
|
dB
|
< 5
|
|
Insert & Pull Out (Max.)
|
kg
|
2
|
|
Insert and Pull Frequency
|
time
|
> 1000
|
|
Operating Temperature
|
°C
|
-40~+85
|
