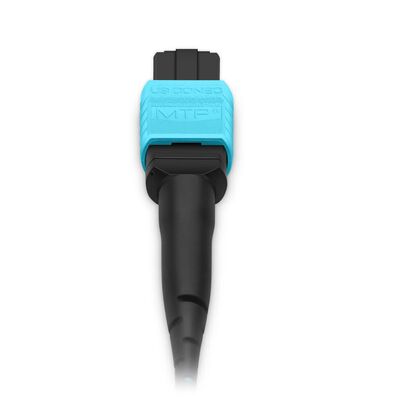

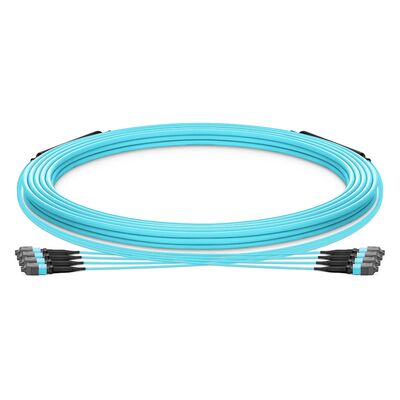

MTP Trunk Cable with 0.20dB Low IL 48F OM3 OFNP Fire Safety-Rated for High-Density Data Centers
| Product Name: | MPO Fiber Optic Patch Cord | Cable Color: | Yellow / Aqua/purple |
| Cable Shape: | Round / Ribbon | Connector Type: | Female /Male |
| Cable Materia: | LSZH / PVC | Polarity: | A/B/C |
| High Light: | 0.20dB Low IL MTP Trunk Cable,48F OM3 MTP Fiber Optic Patch Cord,OFNP Fire Safety-Rated MTP Fiber Breakout Cable |
||
- US Conec MTP® Connector with Optimal 0.20dB Low IL
- Bend Insensitive Fiber with 7.5mm Min. Bend Radius
- 2.0mm Small-diameter Breakout Saves Space for High-density Cabling
- OFNP Fire Safety-Rated for Use in Plenum Air Spaces
- Color-Coded Connector Boots for Easy Identification
- For Longer Distances in Cabinet-to-Cabinet Applications
- Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
- Data Center Infrastructure
- Storage Area Network - Fiber Channel
- Emerging 40 & 100Gbps Protocols
| Connector A | US Conec MTP® Elite Female (Non-Pinned) |
| Connector B | US Conec MTP® Elite Female (Non-Pinned) |
| Fiber Mode | OM3 50/125μm |
| Wavelength | 850/1300nm |
| Glass Fiber | Bend Insensitive Fiber |
| Minimum Bend Radius | 7.5mm |
| Polish Type | UPC to UPC |
| Polarity | Type B |
| Cable Jacket | Plenum (OFNP) |
| Cable Structure | Double Jacket |
| Fiber Count | 48 Fibers (Base-12) |
| Breakout Length | 0.5m |
| Cable Outside Diameter (OD) | 8.5-9.0mm |
| Breakout Outside Diameter (OD) | 2.0mm |
| Insertion Loss | ≤0.20dB |
| Return Loss | ≥27dB |
| Attenuation at 850nm | ≤2.3dB/km |
| Attenuation at 1300nm | ≤0.6dB/km |
| Long-term Tensile Load | 200N |
| Short-term Tensile Load | 660N |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -10 to +70°C (14 to 158℉) |
-
