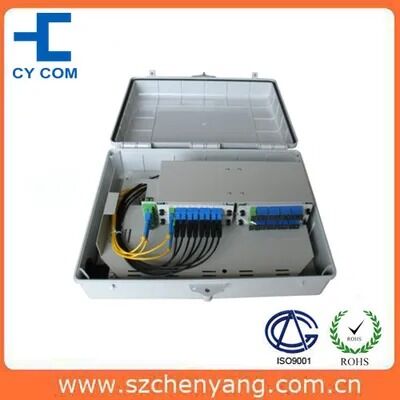

Fiber Optic Plastic Splitter Distribution Box (32 port)
| Model NO.: | CDB-GFL/S-32D | Type: | Optical Fiber Distribution Box |
| Specification: | CE, SGS, RoHS | Origin: | Shenzhen China |
| High Light: | 32 port fiber optic splitter box,plastic fiber optic distribution box,MTP MPO splitter box |
||
This Series plastic distribution box, with insert-style splitters, is suitable for outdoor, corridor or weak current silo applications. It can be used for local cable or drop cable end and sub-distribution, as well as protective connection of cable and layout pigtails, and fiber optic terminations of optic access network. The box features lightweight design, compact size, convenient transportation and installation, with capacity of 16 cores or 32 cores.
- Made of imported flame retardant material with aging resistant and UV resistant properties
- Sealed with pressed strip, waterproof and dustproof with IP65 rating
- Special screw and key for door lock; Can be wall-mounted or pole-mounted
- Operating temperature: -40°C to +80°C; Storage temperature: -40°C to +80°C
- Storage compartment for spare pigtails and drop cable, convenient for maintenance
- Special lock device for drop cable outlet; Bilayer structure with bottom for splicing and upper layer for splitting and distribution
- Installing plate can be turned over for easy installation and operation
- 2/4 standard slot positions for installation of insert-style splitters (1x8, 1x16 or 1x32)
- Maximum capacity of 2 splice trays for various connection requirements
-
