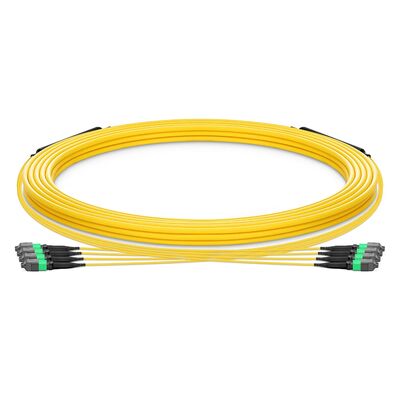

MTP Trunk Cable with 0.35dB Low IL OFNP Fire Safety-Rated and G.657.A1 Bend Insensitive Fiber for High-Density Cabling
| Product Name: | MPO Fiber Optic Patch Cord | Cable Color: | Yellow / Aqua/purple |
| Cable Shape: | Round / Ribbon | Connector Type: | Female /Male |
| Cable Materia: | LSZH / PVC | Polarity: | A/B/C |
| High Light: | 0.35dB Low IL MTP Trunk Cable,OFNP Fire Safety-Rated MPO Fiber Optic Patch Cord,G.657.A1 Bend Insensitive Fiber MTP Fiber Breakout Cable |
||

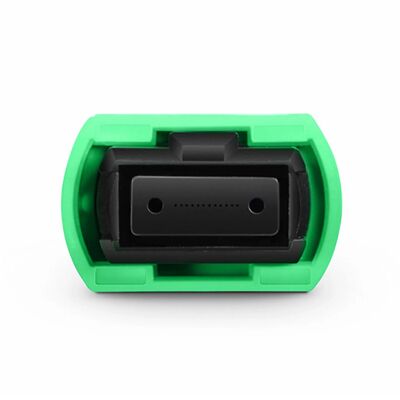

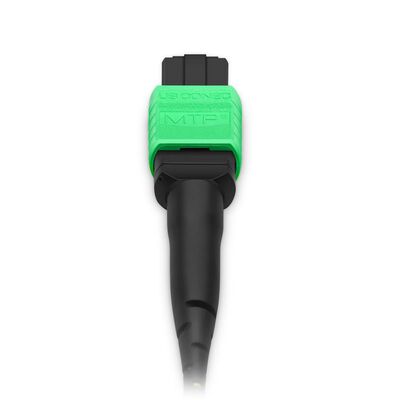

- US Conec MTP® Connector with Optimal 0.35dB Low IL
- G.657.A1 Bend Insensitive Fiber with 10mm Min. Bend Radius
- 2.0mm Small-diameter Breakout Saves Space for High-density Cabling
- OFNP Fire Safety-Rated for Use in Plenum Air Spaces
- Color-Coded Connector Boots for Easy Identification
- For Longer Distances in Cabinet-to-Cabinet Applications
- Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
- Data Center Infrastructure
- Storage Area Network - Fiber Channel
- Emerging 40 & 100Gbps Protocols
| Connector A | US Conec MTP® Elite Female (Non-Pinned) |
| Connector B | US Conec MTP® Elite Female (Non-Pinned) |
| Fiber Mode | OS2 9/125μm |
| Wavelength | 1310/1550nm |
| Glass Fiber | G.657.A1 |
| Minimum Bend Radius | 10mm |
| Polish Type | APC to APC |
| Polarity | Type B |
| Cable Jacket | Plenum (OFNP) |
| Cable Structure | Double Jacket |
| Fiber Count | 48 Fibers (Base-12) |
| Breakout Length | 0.5m |
| Cable Outside Diameter (OD) | 8.5-9.0mm |
| Breakout Outside Diameter (OD) | 2.0mm |
| Insertion Loss | ≤0.35dB (0.15dB Typ.) |
| Return Loss | ≥65dB |
| Attenuation at 1310nm | ≤0.35dB/km |
| Attenuation at 1550nm | ≤0.21dB/km |
| Long-term Tensile Load | 200N |
| Short-term Tensile Load | 660N |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -10 to +70°C (14 to 158℉) |
-
