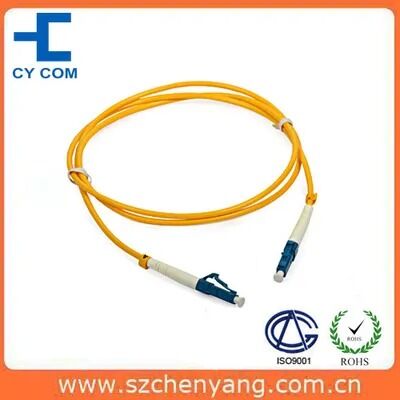

(LC PC Sm Simplex Fiber Optic Patch Cord
| Model NO.: | CPA-LULUS1-30/01 | Application: | Communication |
| Type: | Single-mode Fiber | Connection Structure: | LC |
| Cable Diameter: | 0.9mm,2.0mm,3.0mm | Specification: | RoHS |
| Origin: | Shenzhen, China | HS Code: | 85367000 |
| High Light: | LC PC simplex fiber optic patch cord,MTP MPO fiber optic cable,simplex fiber optic patch cable |
||
- Superior qualified standard PC, APC, UPC, SPC polishing
- 100% optic test: Insertion Loss: ≤ 0.3 (PC); ≤ 0.2 (APC); ≤ 0.2 (UPC); ≤ 0.3 (SPC)
- 100% optic test: Return Loss: ≥ 45 (PC); ≥ 60 (APC); ≥ 55 (UPC); ≥ 50 (SPC)
- φ 0.9mm, φ 2.0mm, φ 3.0mm fiber optic cable optional
- Single mode (9125) or multi mode (50125 or 62.5125) fiber available
- FC, SC, LC, MU, ST, MT-RJ, etc connector
- Good exchange ability and good durability
- Available in fiber bunch, ribbon fan-out, pigtail available
- Meets ISO9001, RoHS and Bell core GR 326-core standards
- Customized specifications welcomed
| Parameter | Specification |
|---|---|
| Insertion Loss (PC) | ≤ 0.3 |
| Insertion Loss (APC/UPC) | ≤ 0.2 |
| Insertion Loss (SPC) | ≤ 0.3 |
| Return Loss (PC) | ≥ 45 |
| Return Loss (APC) | ≥ 60 |
| Return Loss (UPC) | ≥ 55 |
| Return Loss (SPC) | ≥ 50 |
- CATV, metro Test equipment
- Telecommunication networks
- Local area networks (LAN)
- Wide area networks (WAN)
- Premise installations
- Data processing networks
- Video and military active device termination
-
