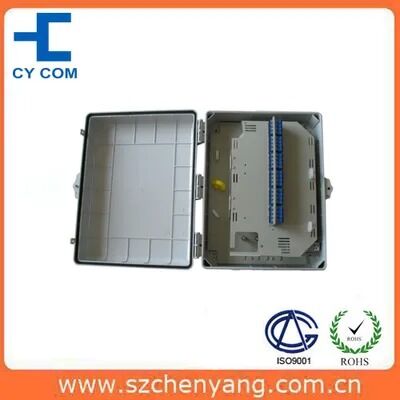

Fiber Optic Distribution Box (48 port)
| Model NO.: | CDB-GFX/S-48D | Type: | Optical Fiber Distribution Box |
| Specification: | CE, SGS, RoHS | Origin: | Shenzhen China |
| High Light: | 48 port fiber optic distribution box,MTP MPO fiber distribution box,fiber optic cable management box |
||
This Series plastic fiber optic distribution box is used for the distribution connection of cable and fiber optic communication devices. It leads out the optic signal from drop cable to pigtails by splicing in the box. It can be used for protective connection of cable and layout pigtails, and fiber optic terminations of optic access networks.
It is suitable for outdoor, corridor, weak current silo or collection points of villas, for the splicing, storage and distribution of local cable or drop cable, with capacity of 24 cores or 48 cores.
- The box is made of imported flame retardant material, with aging resistant and ultra violet resistant characters
- Sealing with pressed strip, waterproof and dustproof with IP65 rating
- Special screw and key for its door lock; Can be installed on wall or mounted on pole
- Temperature range: Working: -40°C to +80°C; Storage: -40°C to +80°C
- Spare pigtails and drop cable can be saved in the storage part, convenient for maintenance
- Special lock device for outlet of drop cable
- Bilayer structure, bottom for splicing and upper layer for splitting and distribution
- 24-48 positions for adaptors of FC, SC or ST
- Maximum 2 pieces of splice tray for satisfying various connection needs
-
