  • quality Fiber Optic Cross-Connection Cabinet (144 port) factory

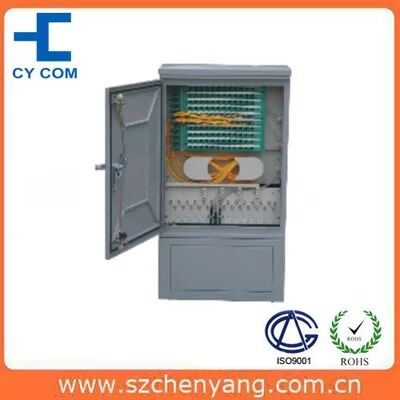

Fiber Optic Cross-Connection Cabinet (144 port)

Trading Properties
Minimum Order Quantity: 1
Tags

fiber optic cassette

patch cord optical fiber

fiber optic patch cord
Specifications
Model NO.: CDB-GXF(04)B Type: Optical Fiber Distribution Box
Specification: SGS, ROHS Origin: Shenzhen, China
HS Code: 85176229
High Light:

144 port fiber optic cabinet

,

MTP MPO cross-connection cabinet

,

fiber optic cabinet with warranty
Product Description
Fiber Optic Cross-Connection Cabinet (144 port)

Standard case body made of high-intensity, anti-corrosive, anti-aging special composite material, designed to withstand various adverse weather conditions with reliable sealing, waterproof, and dampproof properties.

Splicing & Distribution: Integration module with adaptor assembling, fusion and connection, storage in integration. Compatible with various adaptor types including FC, SC, and ST.
Fiber Protection: Adaptors assemble with 30° deflection to ensure proper fiber pigtail bending radius, featuring perfect control winding rings for horizontal and vertical fiber management.
Spare Splice Tray: Bottom end includes spare splice tray for direct fusion and connection of trunk optical cables and distribution cables.
Structural Strength: Each cabinet side withstands 980N vertical pressure, with 200N capacity for outer edge when door is open.
FTTX Applications: Ideal for outdoor light splitting in FTTX networks, providing light splitting function, easy installation, safety, and cost reduction.
Material:
Stainless steel body
Protection Class:
IP65
Security:
New high-security lock mechanism
Cable Management:
New slide-type fixed structure for flexible operation
Fiber Protection:
Security protection structure for radius of curvature
