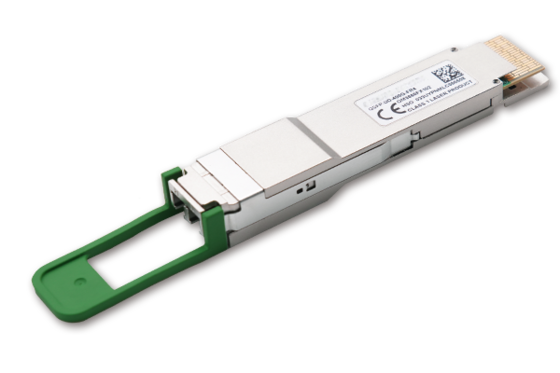

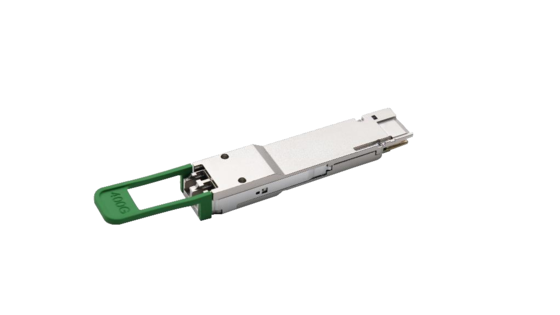

transceiver module QSFP-DD 400GE FR4 2 km of 4 CWDM lanes MUX/DEMUX design
| Form Factor:: | QSFP–DD | Transceiver:: | FR4 |
| Interface:: | LC | Media:: | SMF |
| Reach/km:: | 2km | Power Consumption/W:: | 12 |
| Temperature/℃:: | 0 To 70 | ||
| High Light: | QSFP-DD 400GE FR4 transceiver,2 km fiber optic transceiver,CWDM MUX/DEMUX transceiver module |
||
The OM3660FX102 is a transceiver module designed for 2 km optical communication applications, compliant with the 100G Lambda MSA standard. This module converts 8-channel 53.125 Gbps electrical data to 4-channel 106.25 Gbps optical signals, multiplexing them into a single channel for 425 Gbps optical transmission. On the receiver side, it optically de-multiplexes a 425 Gbps input into 4-channel signals and converts them to 8-channel output electrical data.
Engineered to withstand harsh external operating conditions including temperature extremes, humidity, and EMI interference, this module offers high functionality and feature integration accessible via the I2C interface.
- QSFP-DD MSA rev5.0 compliant
- 100G Lambda MSA compliant
- 802.3cu compliant
- 400GE FR4 specification compliant
- QSFP-DD CMIS4.0 management interface compliant
- Non-hermetic package design
- 4 CWDM lanes MUX/DEMUX design
- 8 x 53.125 Gbps PAM4 electrical interface (400GAUI-8)
- Maximum power consumption 12 W
- LC duplex connector
- 425 Gbps aggregate bit rate
- Up to 2 km transmission on single mode fiber with FEC
- Single 3.3 V power supply
- RoHS 2 compliant
- 400G Ethernet
- Data center networks
-
