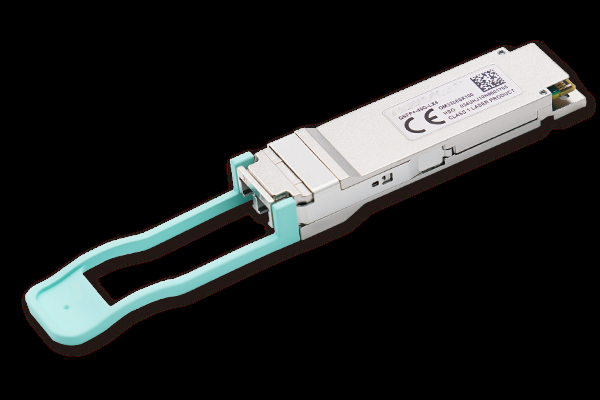

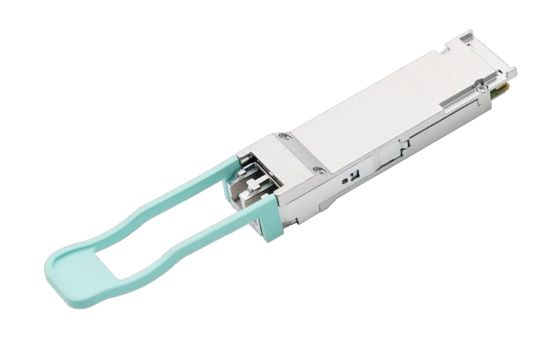

QSFP+ 40G LX4 transceiver module,4 CWDM lanes MUX/DEMUX design

Basic Properties
Place of Origin: Shenzhen,China
Brand Name: CY COM
Certification: ISO9001:2015, ISO14001:2015, ROSH
Model Number: QSFP+ 40G LX4
Trading Properties
Minimum Order Quantity: 10PCS
Payment Terms: T/T, Western Union
Supply Ability: 50k/Month
Tags

12.3 GHz AOC Active Optical Cable

OM3 AOC Active Optical Cable

QSFP+ 40G LX4 transceiver module
Specifications
Form Factor:: QSFP+ Transceiver:: LX4
Interface:: LC Media:: SMF MMF
Reach/km:: 2km/SMF 0.15km/MMF Power Consumption/W:: 3.5
Temperature/℃:: 0 To 70
High Light:

QSFP+ 40G LX4 transceiver module

,

40G LX4 CWDM transceiver

,

QSFP+ transceiver with MUX/DEMUX design
Product Description
QSFP+ 40G LX4 Transceiver Module, 4 CWDM Lanes MUX/DEMUX Design
OM3358SX100 is a QSFP+ transceiver module designed for 2 km SM Fiber or 150m OM3/OM4 MM fiber optical communication applications. It is compliant with IEEE 802.3-2018 40GBASE-LR4 (partly compliant), IEEE 802.3-2018 Annex 86A, QSFP+ MSA standards. Digital diagnostic management interface (DDMI) is realized by I2C interface in compliance with SFF-8636. The module is RoHS 2 compliant.
This module can convert 4-channel 10 Gbps electrical data to 4-channel optical signals, and multiplex them into a single channel for 40 Gbps optical transmission. Similarly, it optically de-multiplexes a 40 Gbps input into 4-channel signals, and converts them to 4-channel output electrical data on the receiver side. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
Transceiver Block Diagram
QSFP+ 40G LX4 transceiver module,4 CWDM lanes MUX/DEMUX design 0
Figure 1-1 Transceiver block diagram
MSA Compliant Connector
QSFP+ 40G LX4 transceiver module,4 CWDM lanes MUX/DEMUX design 1
Figure 2-1 MSA compliant connector
Mechanical Dimensions
QSFP+ 40G LX4 transceiver module,4 CWDM lanes MUX/DEMUX design 2
Figure 3-1 Mechanical dimensions
Product Features
  • QSFP+ MSA compliant
  • IEEE 802.3-2018 compliant
  • 4 CWDM lanes MUX/DEMUX design
  • 4x 10G electrical interface (XLPPI)
  • Maximum power consumption 3.5 W
  • LC duplex connector
  • 41.25 Gbps aggregate bit rate
  • Up to 150 m transmission on OM3/OM4 fiber without FEC
  • Up to 2 km transmission on single mode fiber without FEC
  • Operating case temperature: 0°C to 70°C
  • Single 3.3 V power supply
  • I2C digital management interface
  • RoHS 2 compliant
Applications
  • 40GE Ethernet
  • Data Center Interconnect
  • Enterprise networking
QSFP+ 40G LX4 transceiver module,4 CWDM lanes MUX/DEMUX design 3
QSFP+ 40G LX4 transceiver module,4 CWDM lanes MUX/DEMUX design 4
