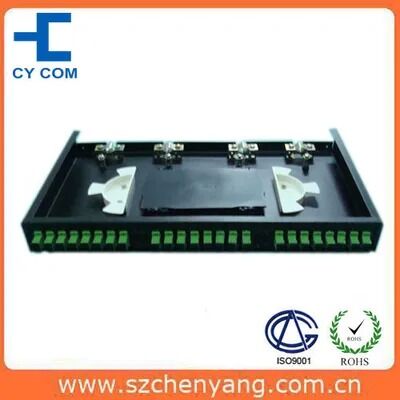

Fixd Type 24cores Rack Mounted Terminal Box
| Model NO.: | CTB-GPZ/JJ-SC24 | Type: | Optical Fiber Distribution Box |
| Wiring Devices: | Fiber Optic Terminal Box | Specification: | SGS, RoSH |
| Origin: | Shenzhen China | ||
| High Light: | 24-core rack mounted terminal box,MTP MPO terminal box,rack mounted fiber optic box |
||
- Suitable for the protective connection between cables and pigtails
- Suitable for the connection between optical cables and optical communication device
- Unique structure, easy installation, for indoor use
- Capacity: 12, 24, 32, 48, 64, 72, 96 splices
- Adapters installed: FC, ST, LC, SC adapter etc.
- Mounting: Rack Mount, Wall Mount
- Suitable for: Ribbon and bunchy fiber cable
- Cover: Easily opened for installation with outlet device for fiber metal high voltage protective earthing
- Inner Components:
- Bracket: Supporting the inner structure
- Fiber Optic Splice Tray: Stores fiber connectors with protective components and spare fibers (≥1.6m length)
- Fixing Device: For fixation of fiber protective tubes and pigtails
- All components made of excellent anti-corrosion materials or static plastic sprayed
- Heat shrink protective sleeves melting temperature ≥120°C, intenerate temperature >90°C
- Operating temperature range: -25°C to 40°C
- All materials are non-toxic and non-corrosive
- Made of cold-rolling steel with static spreading-plastic
- Compact dimensions and easy operation
- Convenient rack mounting system
- Stackable splice trays with flexible turning
- Unique structure with adequate operation space
- Adjustable clamp seal ring for different cable sizes
- Excellent seal performance for indoor use
| Parameter | Value |
|---|---|
| Environmental temperature | -25°C to 55°C |
| Relative humidity | ≤85% (at ≤30°C) |
| Atmosphere pressure | 70~106Kpa |
| Insulating resistance | ≥2×10⁴ MΩ /500VDC |
| Voltage-resistance strength | 15kv/DC/1min (non-puncture, no arc-over) |
-
