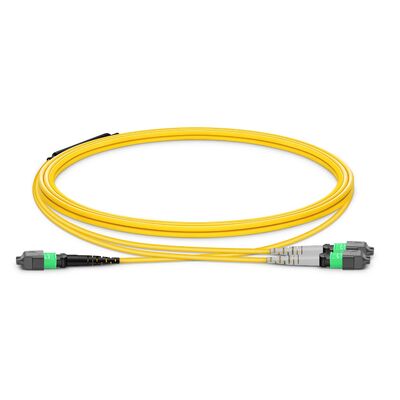

MTP Breakout Cable with 0.35dB Low IL and 8° APC Endface for OFNP Fire Safety-Rated Data Center Links
| Product Name: | MPO Fiber Optic Patch Cord | Cable Color: | Yellow / Aqua |
| Cable Shape: | Round / Ribbon | Connector Type: | Female /Male |
| Cable Materia: | LSZH / PVC | Polarity: | A/B/C |
| High Light: | 0.35dB Low IL MTP Breakout Cable,8° APC Endface MTP Fiber Optic Patch Cord,OFNP Fire Safety-Rated MTP Fiber Jumper |
||
- US Conec MTP® Connector with Optimal 0.35dB Low IL
- G.657.A1 Bend Insensitive Fiber with 10mm Minimum Bend Radius
- 8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
- OFNP Fire Safety-Rated for Use in Plenum Air Spaces
- Designed for Linking 800G QSFP-DD and 400G QSFP-DD/OSFP Transceivers
- Convert from 16 to 8 Fibers for 100% Fiber Utilization
- Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
- Data Center Infrastructure
- Storage Area Network - Fiber Channel
- Emerging 40 & 100Gbps Protocols

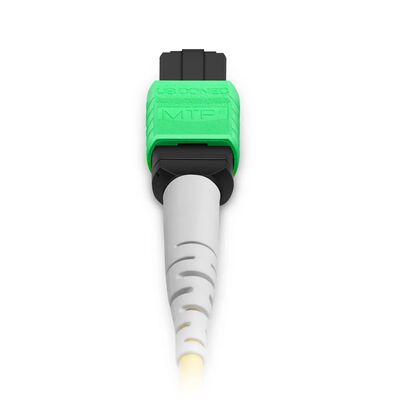

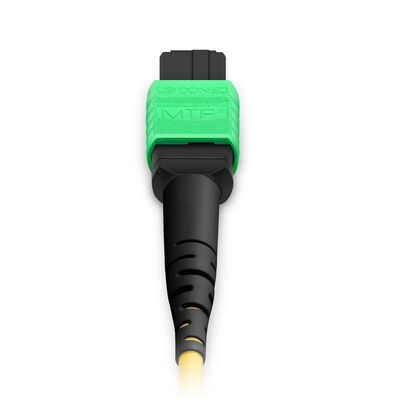

| Connector A | US Conec MTP®-16 Female (Non-Pinned) APC with Offset Key |
| Connector B | US Conec MTP®-8 Female (Non-Pinned) APC |
| Fiber Mode | OS2 9/125μm |
| Wavelength | 1310/1550nm |
| Glass Fiber | G.657.A1 |
| Polarity | Crossover |
| Insertion Loss | ≤0.35dB (0.15dB Typ.) |
| Return Loss | ≥65dB |
| Cable Jacket | Plenum (OFNP) |
| Minimum Bend Radius | 10mm |
| Attenuation at 1310nm | ≤0.35dB/km |
| Attenuation at 1550nm | ≤0.21dB/km |
| Cable Outside Diameter (OD) | 3.0mm |
| Breakout Length | 0.5m |
| Installation Tensile Load | 66N |
| Tensile Strength | 60/120N (Long/Short Term) |
| Operating Temperature | -10 to 60°C (14 to 140℉) |
| Storage Temperature | -10 to 70°C (14 to 158℉) |
-
