OM3 Multimode Branch Multicore 0.5M LC Optical Fiber Jumper
| Product name: | Branch Fiber Patch Cord | Cable color: | Blue |
| length: | 0.5m,1m,2m,3m Or Customized | Cable Dimension: | 0.9mm, 2.0mm,3.0mm |
| Connector: | LC | Model: | Multimode |
| wavelength:: | 1310nm Or 1550nm | Cable type: | G652D, G657A1,OM3 |
| High Light: | 0.5M LC optical fiber jumper,OM3 LC optical fiber jumper,OM3 Multimode optical fiber jumper |
||
OM3 Multimode Branch Multicore 0.5M LC Optical Fiber Jumper
1. Feature
1. High return loss
2. Low insertion loss
3. Patch cord Passed RoHS,ISO9001
4. LZSH or PVC jacket
5. CCTC A Type optical fiber Ferrule
General patch cords
2. Application
1). Communication rooms
2). FTTH (Fiber to The Home)
3). LAN (Local Area Network)
4). FOS (fiber optic sensor)
5). Fiber Optic Communication System
6). Optical fiber connected and transmitted equipment
7). Defense combat readiness
3. Specification
| Type | Standard,Master |
| Style | LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC |
| Fiber |
Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
| Cable |
Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss |
≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
|
Return Loss (Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
| Repeatability | ±0.1dB |
| Operating temperature | -400C to 850C |
|
Geometry Requirement ( Singlemode) |
Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
4. Specifications&Performances
| Fiber Type | Singlemode(APC Polish) | Multimode(PC/Flat Polish) | ||
| Parameter | Standard | Low loss | Standard | Low loss |
| Insertion Loss Maximum | <0.70 | <0.35db | <0.70dB | <0.35dB |
| Retrurn Loss | >60dB | None | ||
| Durability | 500Matings | |||
| Operating Temperature | -40C to 80C | |||
| Test Wavelength | 1310nm | 850nm | ||
5. Product list
| Boot | Connector | Fiber Type | Cable number | Ferrule | Connector |
|
0.9mm 2.0mm 3.0mm |
LC FC SC ST MU D4 MTRJ MPO DIN
|
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber Ribbon |
PC APC UPC |
1M 2M 3M4M 5M ......... Customized |
(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.
(2) Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,
2；IPQC inspects the production line to ensure that the production meets the quality requirements.
3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements
(3) Optical Test. Our products comply with IEC and ITU standards
(4) At least 30% spot test by Quality Assurance Department after the products finished.

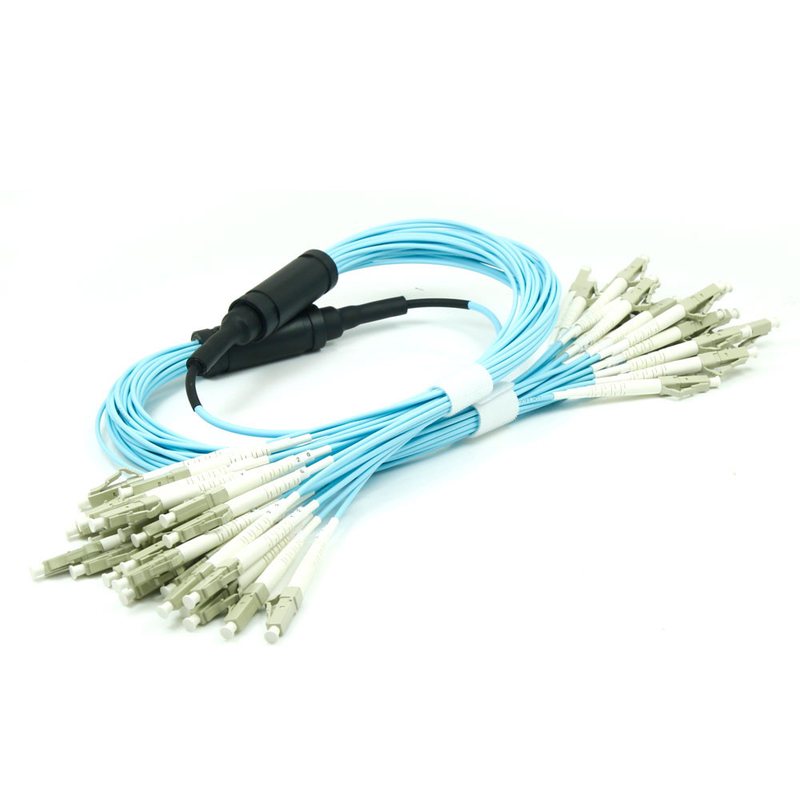

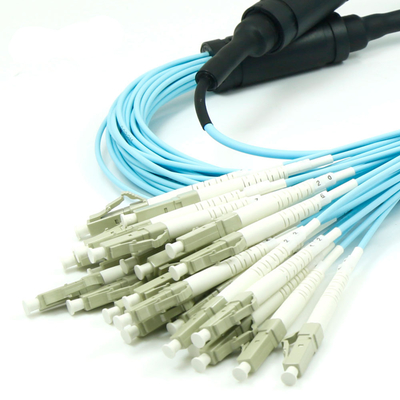

Product picture:
-
