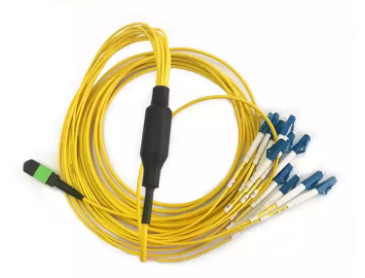

MPO/UPC to LC/UPC 12 Core Patch Cord MPO/UPC Connector

MPO/UPC to LC/UPC 12 Core Patch Cord MPO/UPC Connector
MPO/UPC to LC/UPC 12 Core Patch Cord MPO/UPC Connector
video play

Large Image :  MPO/UPC to LC/UPC 12 Core Patch Cord MPO/UPC Connector

Product Details:
Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: MPO-LC
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: PE bag
Delivery Time: 3-15 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 1 million connector / month
Detailed Product Description
Product Name: MPO Fiber Optic Patch Cord Cable Color: Yellow / Aqua
Cable Shape: Round / Ribbon Connector Type: Female /Male
Cable Materia: LSZH / PVC Polarity: A/B/C
High Light:

mpo patch cable

,

mpo fiber patch cord

MPO/UPC to LC/UPC 12 Core Patch Cord MPO/UPC Connector



Description

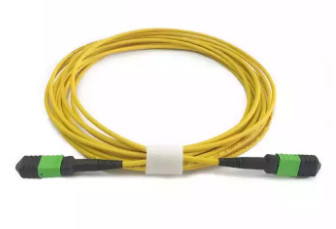

MPO/MTP trunk cables are used to interconnect cassettes, panels or ruggedized MPO fan-outs, spanning MDA, HAD and EDA zones, and easy to rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration.
MPO/MPT trunk cables using a compact and rugged microcable structure, according to different colors divided into SM, MM and 10G MM. The fiber ranges from 12 to 144, MTP polarity options are TIA way is Style A(up), Style B(down) and Style C(up/up). The cable length belongs to a custom product, please kindly email your requirements to us!



Features
· With 12-fiber and 24-fiber MPO/MTP connector standard
· Available in OS1/2, OM2, OM3 and OM4
· Available in FC,LC, SC, ST, MU, and MTP
· Interface polished type has PC, UPC and APC
· Available in 12 / 24 / 36 / 48 / 72 / 96 / 144-fibers
· 100% factory tested
· Discrete connectors are heat-cured and use ceramic ferrules and sleeves
· Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
· Customized for length, staggering, connector type, breakout style, fiber count, and labeling fiber



Applications:
◆ Data Centre Infrastructure
◆ Storage Area Network-Fiber Channel
◆ Emerging 40 & 100Gps Protocols



Specifcation:



Model
SM
MM
Connector Fiber Count
8/12/24 core
Polish
PC/APC
Housing Color
standard(green) Elite(yellow)
standard (green)
Standard(Beige) Elite(Auqa)
Insertion Loss Standard Type
less than 0.7dB
less than 0.5dB
Insertion loss Elite type
less than 0.35dB
less than 0.3dB
Return Loss(dB)
PC>50dB/APC>60dB
>30dB
Durability(500matings)
less than 0.2dB

Test Wavelength
1310/1550nm
850/1300nm



Packing:

MPO/UPC to LC/UPC 12 Core Patch Cord MPO/UPC Connector 0
