Orange Cable 3.0mm SC Simplex Multimode Patch Cord 3M

Large Image : Orange Cable 3.0mm SC Simplex Multimode Patch Cord 3M

Product Details:

Place of Origin:	Shenzhen
Brand Name:	CY COM
Certification:	ISO ROHS

Payment & Shipping Terms:

Minimum Order Quantity:	10
Delivery Time:	5-10 work days
Payment Terms:	T/T, Western Union, MoneyGram, L/C

Contact Now

Detailed Product Description

Product Name:	Fiber Patch Cord	Cable Color:	Orange
Length:	1m,2m,3m Or Customized	Cable Dimension:	0.9mm, 2.0mm,3.0mm
Connector:	FC	Wavelength::	1310nm Or 1550nm
Cable Type:	G652D, G657A1,OM3	Fiber Type:	Simplex And Duplex
Highlight:	SC simplex Multimode Patch Cord , 3.0mm Multimode Patch Cord , Multimode Patch Cord 3M

Orange Cable 3.0mm SC Simplex Multimode Patch Cord 3M

Feature:

Price-Competitive
Low Insertion Loss & PDL
Factory-terminated and Tested
Fiber Options: G.652D /G.657A1/OM1/OM2/OM3 and PM Panda Fiber
Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
Polishing Options: PC/UPC/APC
Feature Connector with Ceramic Ferrules

Application:

Telecommunication networks, Gigabit Ethernet

CATV, Video, Multimedia

Active device termination, Premise installations

Industrial, Military

Specification:

Model Name	Optical Fiber Patch Cord
Fiber Type	Multimode (OM3)
Cable Assembilies	Duplex
Jacket Material	PVC (LSZH Negotiable)
Cable Diameter (mm)	2.0mm
Connector Type	LC SC FC ST
End Face	PC
Working Wavelength (nm)	850/1300
Insertion Loss (dB)	≤0.3dB(MAX) ≤0.2dB(Typical)
Return Loss (dB)	UPC ≥35dB
Exchangeability	≤0.2dB
Operating Temperature(℃)	-40～85
Storage Temperature(℃)	-40～85

Quality Guarantee

(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.

(2) Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,

2；IPQC inspects the production line to ensure that the production meets the quality requirements.

3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements

(3) Optical Test. Our products comply with IEC and ITU standards

(4) At least 30% spot test by Quality Assurance Department after the products finished.

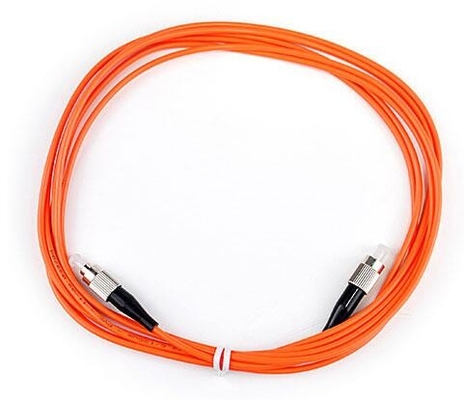

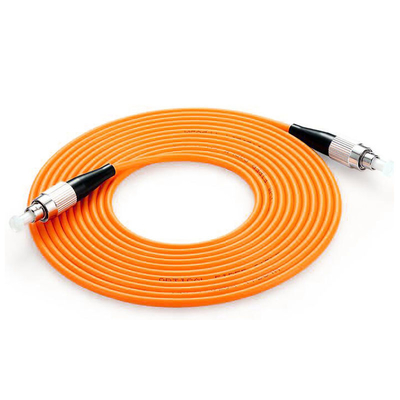

Product picture
