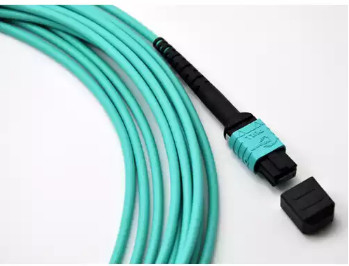

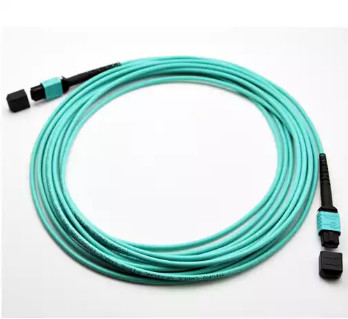

LSZH Jacket OM3 MPO Trunk Cable 12 Core UPC 30m Multimode

LSZH Jacket OM3 MPO Trunk Cable 12 Core UPC 30m Multimode
LSZH Jacket OM3 MPO Trunk Cable 12 Core UPC 30m Multimode
video play

Large Image :  LSZH Jacket OM3 MPO Trunk Cable 12 Core UPC 30m Multimode

Product Details:
Place of Origin: SHENZHEN CHINA
Brand Name: Senko / US CONEC / Furukawa Connector
Certification: ISO9001:2015
Model Number: MPO MTP UPC OM3 OM4 8F 12F 24F
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: US $10 - 20/ Piece
Packaging Details: 1 PCS /PE bag
Delivery Time: 7-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50K
Contact Now
Detailed Product Description
Model No.: 12 Fiber MPO-MPO Connector Type: MPO-MPO
Use: Data Center Polarity: Type B (Key Up - Key Up)
Outer Jacket Material: LSZH OFNR OFNP Insert Loss: Standard ≤ 0.7db | Low ≤ 0.35db
Highlight:

OM3 MPO Trunk Cable

,

12 Core MPO Trunk Cable

,

OM3 Multimode Fiber Optic Cable

OM3 MPO Trunk Cable 12 Core UPC 30m Fiber Patch Cord Multimode Fiber Optic Cable

Low Loss 8/12/24 strand MTP/MPO OM3/OM4/OM5 50/125 Multimode trunk cable patch cord polarity B for high density wiring
MPO/MTP trunk cables are used to interconnect cassettes, panels or ruggedized MPO fan-outs, spanning MDA, HAD and EDA zones, and easy to rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration. Each cable has a Male or Female MTP/MPO connector on each end. With highly integrated design and manufacturing capability, Shenzhen IH Fiber Cable can provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords , IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MTP Patch Cords ,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel

Applications

1. High density architectures
2. Data communication network
3. Optical System Access network
4. Storage area networking fiber channel
5. LANS / WANS/ FTTX

Features

1. 100% pre-terminated and tested in factory to ensure transfer performance
2. Rapid configuration and networking, time-saving
3. Supports 40G and 100G network applications
4. Jacket material: LSZH, OFNR, OFNP available
5. Supports up to 12C, 24C, 48C, 72C,96C, 144C
Specification
Specification
Single Mode
Multi Mode
Parameter
PC
UPC
APC
UPC
Operating Wavelength
1310nm, 1550nm
850nm, 1300nm
Insertion Loss
≤0.3dB
≤0.2dB
≤0.3dB
≤0.2dB
Return Loss
≥40dB
≥50dB
≥60dB
≥30dB
Fiber Type
G652D,G655, G657A1, G657A2, G657B3
OM1/OM2/OM3/OM4/OM5
Fiber Brand
YOFC,Corninng
Exchange
≤0.2dB
Repeartability
≤0.2dB
Durability
> 1000 times
Connectors Type
SC, LC, FC, ST, E2000, MU, MTRJ, MPO, DIN, SMA, VF-45, LX.5
Cable Type
Simplex, Duplex(figure 8)
Sheath Material
PVC, LSZH, OFNR, OFNP
Cable Diameter
φ3.0mm, φ2.0mm, φ0.9mm or Specify
Length (M)
Customized
Operating Temperature
-40℃~+60℃
Storage Temperature
-45℃~+85℃
Compliant Standards
CE,RoHS, REACH and IEC
