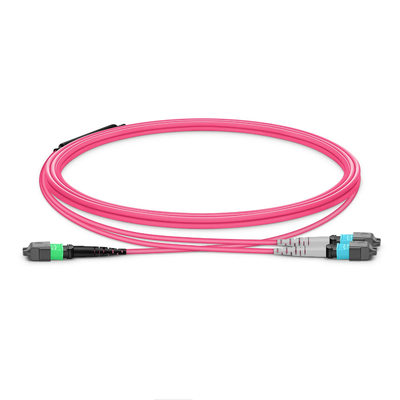

MTP Breakout Cable OM4 OFNP Fire Safety-Rated with 0.35dB Low IL for High-Speed Data Center Links
| Product Name: | MPO Fiber Optic Patch Cord | Cable Color: | Yellow / Aqua |
| Cable Shape: | Round / Ribbon | Connector Type: | Female /Male |
| Cable Materia: | LSZH / PVC | Polarity: | A/B/C |
| High Light: | OM4 MTP Breakout Cable,OFNP Fire Safety-Rated MTP Fiber Optic Patch Cord,0.35dB Low IL MTP Fiber Jumper |
||
- US Conec MTP® Connector with Optimal 0.35dB Low IL
- Bend Insensitive Fiber with 7.5mm Minimum Bend Radius
- 8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
- OFNP Fire Safety-Rated for Use in Plenum Air Spaces
- Designed for Linking QSFP56 and QSFP-DD and OSFP Transceivers
- Convert from 16 to 8 Fibers for 100% Fiber Utilization
- Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
- Data Center Infrastructure
- Storage Area Network - Fiber Channel
- Emerging 40 & 100Gbps Protocols

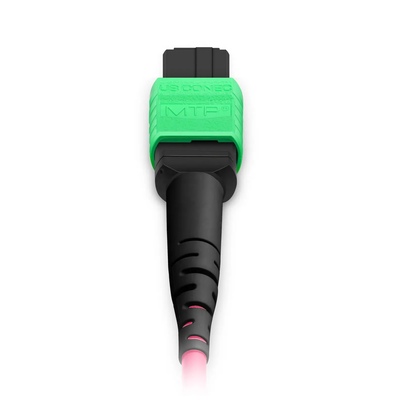

| Connector A | US Conec MTP®-16 Female (Non-Pinned) APC with Offset Key |
| Connector B | US Conec MTP®-8 Female (Non-Pinned) UPC |
| Fiber Mode | OM4 50/125μm |
| Wavelength | 850/1300nm |
| 400G Ethernet Distance | 50/100m at 850nm |
| 800G Ethernet Distance | 50m at 850nm |
| Glass Fiber | Bend Insensitive Fiber |
| Polarity | Crossover |
| Insertion Loss | ≤0.35dB (0.15dB Typ.) |
| Return Loss | ≥20dB |
| Cable Jacket | Plenum (OFNP) |
| Minimum Bend Radius | 7.5mm |
| Attenuation at 850nm | ≤2.3dB/km |
| Attenuation at 1300nm | ≤0.6dB/km |
| Cable Outside Diameter (OD) | 3.0mm |
| Breakout Length | 0.5m |
| Installation Tensile Load | 66N |
| Tensile Strength | 60/120N (Long/Short Term) |
| Operating Temperature | -10 to 60°C (14 to 140℉) |
| Storage Temperature | -10 to 70°C (14 to 158℉) |
-
DGood Durability,have a dedicated after-sales team.
-
LMeet the standard of Telcordia GR-1435-CORE compliant.
-
OShip fast,good cost-effective.great sale-after service.
