FTTB Female Male UPC APC Mpo Fanout Cable Purple
| Polarity: | A/B/C | Connector Type: | Female /Male |
| Cable Color: | Violet / Purple | Fiber Type: | OM4 |
| Loss Data: | Elite Loss/Standard Loss | Cable Material: | LSZH / OFNP / PVC |
| High Light: | Purple Mpo Fanout Cable,FTTB Mpo Fanout Cable,Female Mpo Fanout Cable |
||
Purple FTTB Female Male UPC APC Mpo Fanout Cable

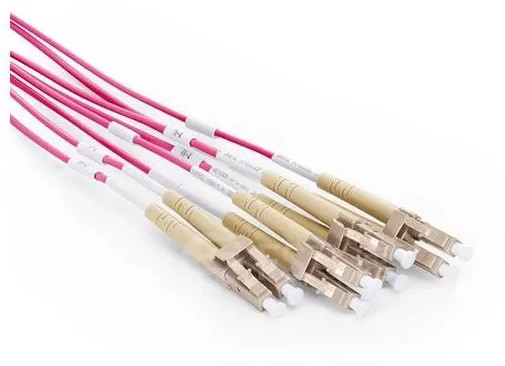

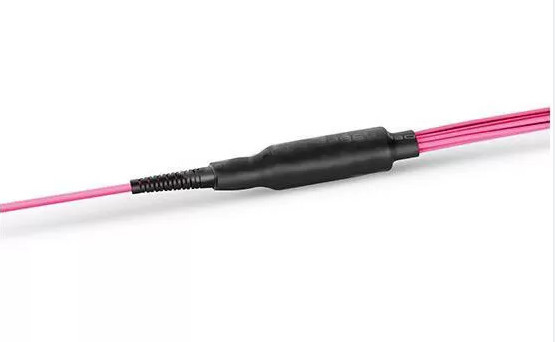

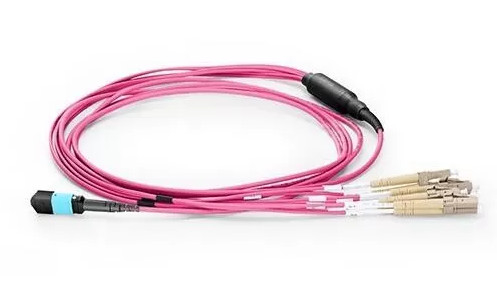

Breakout Patch Cord MPO to 4 LC-DX 2.0mm Fanout Trunk OM4 Violet Purple Cable,Elite loss
Description:
MPO / MTP fiber patch cords in high-density data centers, fiber to the building (FTTB) ,optical splitter /40G/100G SFP / SFP + optical transceiver device to flexible connection between different modules. equipment and systems . so that the optical signal can transmit the desired channel, to achieve and complete a predetermined or desired.purpose and requirements.
Features:
Small size,high density
low insertion loss, high return loss
high precision, the precision of the MT guide pin and guide hole to ensure the accuracy of the optical fiber
Optical Alignment
high performance, durability and good material
meet the ROSH requirements
Applications:
◆ Data Centre Infrastructure
◆ Storage Area Network-Fiber Channel
◆ Emerging 40 & 100Gps Protocols
Specifications:
| Item | Technical Parameters | |
| Connector Type | UPC | APC |
| Operation Temperature | -40°C ~ +80°C | |
| Storage Temperature | -40°C ~ +85°C | |
| Insertion Loss |
Single-mode low ferrule: ≤0.35dB (typical value); Mutil-mode low ferrule: ≤0.35dB (typical value);
Single-mode standard ferrule: ≤0.6dB (typical value); Mutil-mode standard ferrule: ≤0.dB (typical value); |
|
| Return Loss | Single-mode ferrule≥60dB | Mutil-mode ferrrule ≥20dB |
| The MPO end type | Male: with guide pin; Female: without guide pin | |
| Fiber count | 4,8,12＆24 MT fiber | |
| The other end of the connector type | MPO-female* , MPO-male , FC , SC , ST , MU , LC , E2000 | |
| Fiber mode | Single-mode(G652,G655,G657), multi-mode= (50, 62.5, OM2, OM3, OM4) | |
| Fiber cable type | 250um ribbon fiber,ribbon cable,Bundle fiber optic cable | |
Polarity Types:
The jumper configuration shall be polarity type A (this is shown as the first ribbon diagram below) in key-up to key-down. Type B and Type C will not be used.
Drawing:
-
