MTP Breakout Cable with 8° APC Endface, OFNP Fire Safety-Rated, and 0.35dB Low IL for High-Speed Data Links

MTP Breakout Cable with 8° APC Endface, OFNP Fire Safety-Rated, and 0.35dB Low IL for High-Speed Data Links
MTP Breakout Cable with 8° APC Endface, OFNP Fire Safety-Rated, and 0.35dB Low IL for High-Speed Data Links
video play

Large Image :  MTP Breakout Cable with 8° APC Endface, OFNP Fire Safety-Rated, and 0.35dB Low IL for High-Speed Data Links

Product Details:
Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: MPO/MTP
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: PE bag
Delivery Time: 3-15 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 1 million connector / month
Contact Now
Detailed Product Description
Product Name: MPO Fiber Optic Patch Cord Cable Color: Yellow / Aqua
Cable Shape: Round / Ribbon Connector Type: Female /Male
Cable Materia: LSZH / PVC Polarity: A/B/C
Highlight:

8° APC Endface MTP Breakout Cable

,

OFNP Fire Safety-Rated MTP Fiber Optic Patch Cord

,

0.35dB Low IL MTP MPO Fiber Breakout Cable

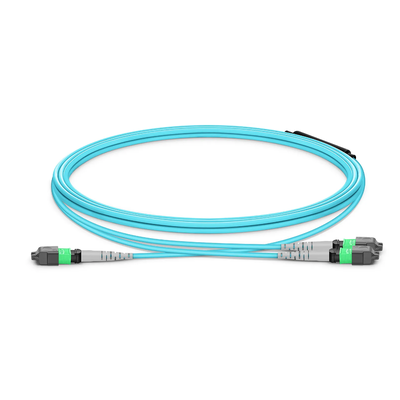

MTP Breakout Cable: MTP-12 F APC to 2 x MTP-4 F APC, 8F, OM3, OFNP, Type B
The MTP®-12 to 2 x MTP®-4 APC (Female) OM3 cable is a multimode, 4-channel-to-two 2-channel splitter fiber cable designed for high-performance data center applications. This innovative solution uses 8 active fibers for data transmission and 4 inactive fibers as strength members. The APC endface features an 8-degree polished angle that effectively deflects internal optical back reflections, preventing signal distortion and ensuring superior signal quality.
This breakout cable enables efficient connectivity between 800G NVIDIA InfiniBand twin-port OSFP transceivers and four 400G NVIDIA InfiniBand OSFP/QSFP112 transceivers in high-speed data center fiber links. When used with 400Gb/s transceivers, only two channels are activated, effectively creating 200Gb/s transceivers. Compared to traditional breakout cassettes, MTP® breakout cables offer superior cost-effectiveness and lower signal loss.
Key Features
  • US Conec MTP® Connector with optimal 0.35dB low insertion loss
  • Bend insensitive fiber with 7.5mm minimum bend radius
  • 8° APC endface minimizes optical reflections to improve signal quality
  • OFNP fire safety-rated for use in plenum air spaces
  • Designed for linking twin-port OSFP and single-port OSFP/QSFP112 transceivers
  • Converts from 12 to 4 fibers for 100% fiber utilization
  • Supports InfiniBand, Ethernet and NVLink protocols
  • Compliant with IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D standards
Applications
  • Data Center Infrastructure
  • Storage Area Network - Fiber Channel
  • Emerging 40 & 100Gbps Protocols
Technical Specifications

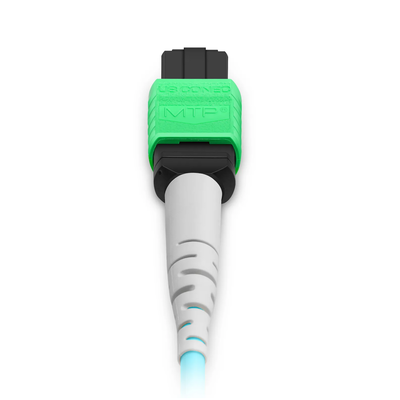

Connector A US Conec MTP® Elite Female (Non-Pinned)
Connector B US Conec MTP® Elite Female (Non-Pinned)
Fiber Mode OM3 50/125μm
Wavelength 850/1300nm
400G Ethernet Distance 50/100m at 850nm
800G Ethernet Distance 50m at 850nm
Glass Fiber Bend Insensitive Fiber
Polish Type APC to APC
Insertion Loss ≤0.35dB (0.15dB Typ.)
Return Loss ≥45dB
Attenuation at 850nm ≤2.3dB/km
Attenuation at 1300nm ≤0.6dB/km
Cable Jacket Plenum (OFNP)
Minimum Bend Radius 7.5mm
Cable Outside Diameter (OD) 3.0mm
Trunk Length 0.2m
Installation Tensile Load 66N
Tensile Strength 60/120N (Long/Short Term)
Operating Temperature -10 to 60°C (14 to 140℉)
Storage Temperature -10 to 70°C (14 to 158℉)
Product Images
MTP Breakout Cable with 8° APC Endface, OFNP Fire Safety-Rated, and 0.35dB Low IL for High-Speed Data Links 0 MTP Breakout Cable with 8° APC Endface, OFNP Fire Safety-Rated, and 0.35dB Low IL for High-Speed Data Links 1 MTP Breakout Cable with 8° APC Endface, OFNP Fire Safety-Rated, and 0.35dB Low IL for High-Speed Data Links 2
