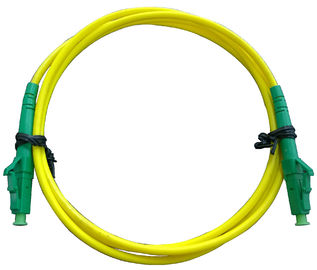

Length Can be customized PVC,LSZH,OFNP Fiber Optic Patch Cord Simplex SM 3.0mm Inter changeability
| Cable material: | PVC,LSZH,OFNP | Structure: | Simplex |
| Color: | Yellow | Length: | Can Be Customized |
| High Light: | fiber patch cord,sc fiber patch cord |
||
High Return Loss Fiber Optic Patch Cord Simplex SM 3.0mm Interchangeability
Features:
- In-line with Telcordia GR-326-CORE standard
- Low insertion loss, high return loss, high reliability
- Good repeatability, interchangeability
- Any diameter of fiber can be chose, 0.9, 2, 3mm ,10g fiber, low smoke and zero halogen can be chosen
Application:
- Fiber-optic communication system
- Fiber-optic data transmission
- LAN, CATV
- Fiber-optic testing system
Material of patch cord:
- Dust caps: LDPE, transparent (RoHS)
- Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
- Inner frame: PBT, white (RoHS)
- Ferrule: zirconium oxide ceramic material, white (RoHS)
- Ferrule’s handle: copper (C3602), nickelage (RoHS)
- Mechanical spring: stainless steel (RoHS)
- Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
- Snap ring: aluminium alloy 6063 (RoHS)
- Ring: copper alloy (HPD62), nickelage (RoHS)
- Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
- Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNP
Specification:
| Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
| Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
Order information:
- For example: SC/UPC-SC/UPC-SM-SX-2.0-5M-LSZH Armored patch cord
- Type: SX/DX optional
- Ferrule type: APC/PC
- Diameter: 0.9, 2.0, 3.0mm
- Length: 1, 2, 3 to 120m
- Fiber: SM/OM1/OM2/OM3/OM4
- Material of jacket: PVC/LSZH/OFNP
Competitive Advantage:
Factory Guarantee:
1. As we are factory, we can guarantee our price is first-hand, very cheap and competitive.
2.To develop advanced technology ,we have built a stable relationship with scientific research center for fiber optical component home and abroad. with a capacity of 200,000 pieces per month .Our products enjoy great reputation for their advanced and precise quality worldwide.
Quality Advantage:
1.We set up a strict quality guarantee system according to the requirments of international management standard ISO9001:2008.
service advantage:
1.To cater for different requirement from our customers, we offer various OEM service.
2.We constantly seek enabling technologies and solutions to help our customers cope with ever changing
environment and requirements.
-
