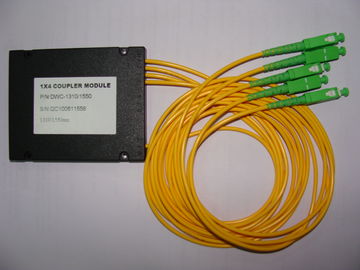

Small Size Reliable , Compact , 1×4 FBT Fiber Optic Splitter
| High Light: | optical communication devices,fiber optic splitter |
||
Small Size Reliable , Compact , 1×4 FBT Fiber Optic Splitter
1×4 Fiber Optic Splitter, 1310/1550nm, SC/APC connector, 3.0mm cable
FBT SPLITTER:
1. FBT Fiber Optic Splitter
2. PC, UPC, APC polishing
3. FC, SC, ST LC AND MU adapter
4. Wavelength: 1310/1550
Description:
The products is mainly used in optical destribtuion network, in order to achieve cell-side of the multi-user access. The products are mainly applied a variety of chassis design, card access or bundled fixed. Total 1 input connector, a number of output connectors as the optical output, 2.0nm or 3.0nm cable protection, reliable, compact, plug-and-play.
Features:
1. Various coupling splitting ratios
2. Small size reduced physical space requirements
3. Cable length, diameter optional
4. PC, UPC and APC connector Polish types
5. Available with FC, SC, ST, LC and MU adapters
6. Wavelength: 1310/1490/1550nm
| Techical Standard | ||||
| Type | 1:04 | 1:08 | ||
| Insertion loss(d B) | ≤7.4 | ≤10.9 | ||
| Homogeneith (d B) | ≤1.2 | ≤1.8 | ||
| Wavelength nm | 1310/1490/1550 | 1310/1490/1550 | ||
| Directivity (d B) | ≥50 | |||
| Return (d B) | ≥55 | |||
| Fiber Type | SMF-28e | |||
| Polarization Dependent Loss (d B) | ≤0.3 | ≤0.4 | ||
| Temperature Dependent Loss (d B) | ≤0.4 | ≤0.6 | ||
| Wavelength Dependent Loss (d B) | ≤0.6 | ≤0.9 | ||
| Operation Temperature °C | -40~+85 | |||
| Storage Temperature °C | -40~+85 | |||
| Adapter | FC/SC | |||
-
