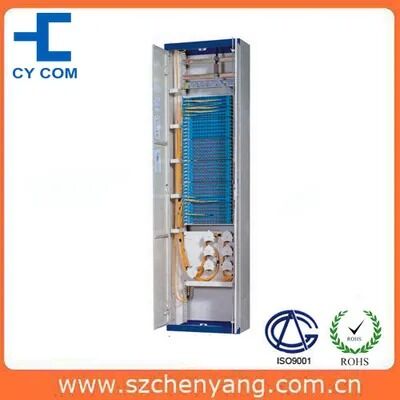

Fiber Optic Distribution Frame (ODF)
| Model NO.: | CDB-GPX(05)A | Type: | Optical Fiber Distribution Box |
| Specification: | SGS, RoSH | Origin: | Shenzhen China |
| High Light: | Fiber optic distribution frame ODF,MTP MPO fiber optic frame,ODF frame with warranty |
||
The Fiber Optic Distribution Frame (ODF) is a high-quality optical distribution cabinet designed for standard 19" installations with a fully enclosed structure.
- Standard 19" rack installation
- Fully enclosed structure with full front operation
- Flexible installation options: against wall, side-by-side or back-to-back
- Complete cable routing design with fiber bend radius over 40mm
- Modular design for easy installation
- Inlet/outlet cables from top or bottom
- Optimal patch cord arrangement with fiber storage units
- Reliable cable holding, protection and grounding
- Compatible with both ribbon and non-ribbon optical fibers
- Supports value-added modular units (fiber splitters, WDM, etc.)
- 19" standard cabinet with large capacity and high density modular design
- Constructed from high-quality cold-rolled steel plate with pickling phosphating and electrostatic powder coating for durability
- Double-opening door design with front and rear access
- Top and bottom cable entry/exit points for convenient installation
- 12-core standard fiber optic splicing unit supporting FC, SC, ST adapters
- Integrated distribution module with AC/DC power distribution and lightning protection
-
