Product Details:
Payment & Shipping Terms:
|
| Product Name:: | Visual Fault Locator | Type:: | Testers &Tools |
|---|---|---|---|
| Use:: | FTTH | Output Power:: | 10wm |
| Test Distance:: | Below 10KM | Interface:: | SC/FC/ST |
| High Light: | 10MW Visual Fault Locator,650nm Visual Fault Locator,VFL fiber optic fault locator |
||

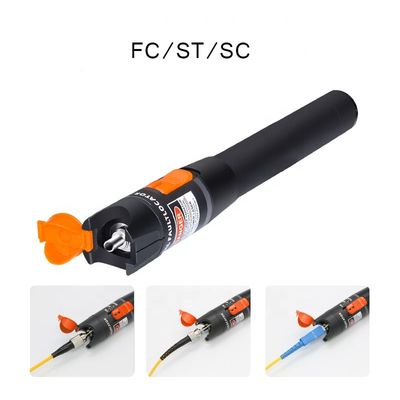

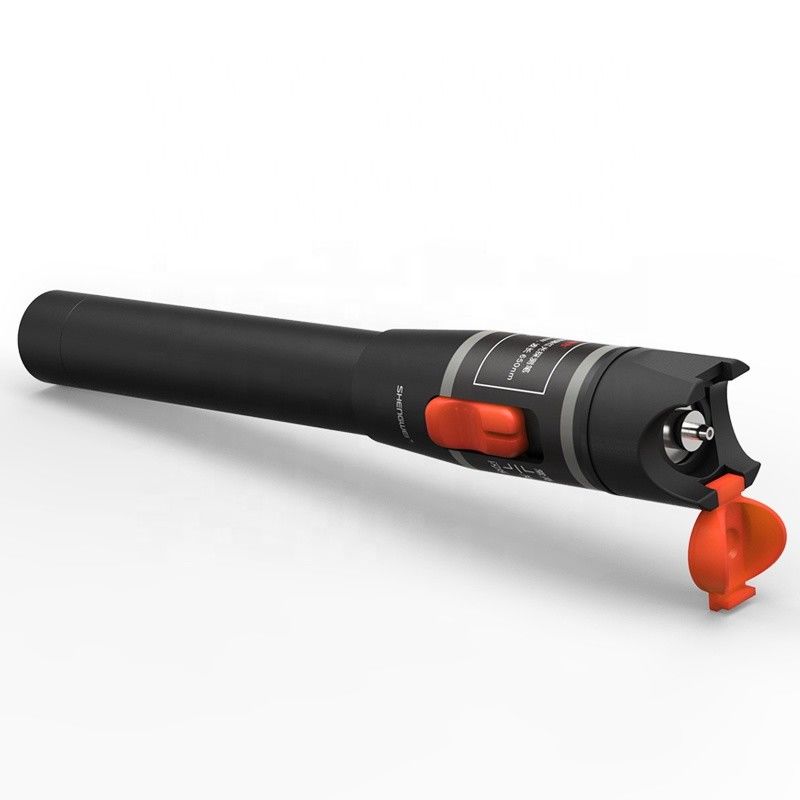

fiber optic tools 10MW Visual fault locator 650nm 10mw VFL fibra optical
1. Summary
650nm visual fault locator has the function of fiber identification and faults locator of SM or MM fiber, it is a helpful assistant to dead zone of OTDR, it is also a basic maintenance tool for fiber network, LAN, ATM fiber system and telecom network system.
2. Functions and feature
--Support CW and 2Hz modulation work mode
--Solid: use special laser end design to avoid damage when dropping on the floor.
--Long working hours: use effective laser drive circuit to ensure 1mW/650nm locator can work more than 60 hours continuously.
--Stable power output: use special laser driver circuit, which can ensure stable power output in the low battery.
--2.5mm universal adapter: use 2.5mm universal adapter, can match SC/LC adapters.
3. Specifications
| Wavelength | 650nm±10nm |
| Light source | FP-LD laser |
| Output power | 5mW, 10mW, 20mW,30mW,50mW (optional) |
| Approx. test range | Up to 50KM |
| Working mode | CW or 2Hz modulation |
| Operating temperature | 0~+40 °C |
| Storage temperature | -25~+70 °C |
| Power | 2pcs AA battery |
| Working hours | ≥ 60(1mW) |
| Weight | 100g(excluding batteries) |
| Dimension (mm) | Φ: 30; L: 185 |
| Colore | Orange ,Blue ,Black ,Purple |
