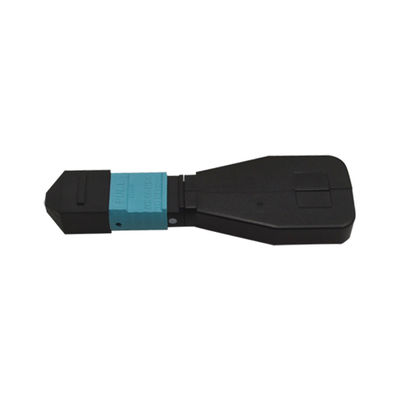

MPO MTP Singlemode Loopback Fiber Optic Patch Cable
| Single-Mode Fiber:: | G652D,G657A1,G657A2 | Multi-Mode Fiber:: | OM3,OM4 |
| Cable: | PVC/LSZH/Plenum | Housing color:: | MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow) |
| Connector Type: | LC,SC,FC, ST, MTRJ,MTP,MPO Etc | Compliant:: | - 10G Fiber Channel Compliant - 40G And 100G IEEE 802.3 - Q |
| High Light: | Loopback Fiber Optic Patch Cable,MPO Fiber Optic Patch Cable,MTP Fiber Optic Patch Cord |
||
Features
MTP Loopback modules are used widely within testing environment especially within parallel optics 40/100G networks. Devices allow verification and testing of transceivers featuring MTP interface – 40GBASE-SR4 QSFP+ or 100GBASE-SR4 devices. Loopbacks are built to link Transmitter (TX) and Receivers (RX) positions of MTP transceivers interfaces. MTP loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MTP trunks/patch leads.
| Fiber type | 9/125 OS2 Single-mode | Fiber connector | MTP Female |
| Return loss | SM>50dB | Insertion loss | SM(G657A1)<0.7dB |
| Tensile Resistance | 15kgf | Insert-pull test | 50times |
| Jacket material | LSZH | Size | 60mm*20mm |
| Operation temperature | -40 to 85°C (-40 to 185°F) | ||
-
PVery Professional products,use well!
-
JExperienced supplier,good service,it is valuable to have a long cooperation.
-
MMeet the standard of Telcordia GR-1435-CORE compliant.
