HUAWEI 100G QSFP28 LR4 SFP Optical Transceiver

HUAWEI 100G QSFP28 LR4 SFP Optical Transceiver
HUAWEI 100G QSFP28 LR4 SFP Optical Transceiver HUAWEI 100G QSFP28 LR4 SFP Optical Transceiver HUAWEI 100G QSFP28 LR4 SFP Optical Transceiver HUAWEI 100G QSFP28 LR4 SFP Optical Transceiver

Large Image :  HUAWEI 100G QSFP28 LR4 SFP Optical Transceiver

Product Details:
Place of Origin: Shenzhen,China
Brand Name: CY COM
Certification: ISO9001:2015, ISO14001:2015, ROSH
Model Number: CY 100G QSFP
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Packaging Details: PE foam and Carton box
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 50k/Month
Contact Now
Detailed Product Description
Product Name:: Fiber Optic Transceiver Module Type:: 100G QSFP
Wavelength:: 1271nm/1291nm/1311nm/1331nm Max Distance:: 40km
Data Rate:: 100Gbps Fiber Interface:: Duplex LC
Highlight:

QSFP28 LR4 SFP Optical Transceiver

,

100G QSFP28 LR4 Transceiver

,

HUAWEI QSFP28 Transceiver

HUAWEI 100G QSFP28 LR4 SFP Optical Transceiver



High Speed Transceiver 100% Original SFP HUAWEI 100G QSFP fiber Optical Transceiver 100G 10KM

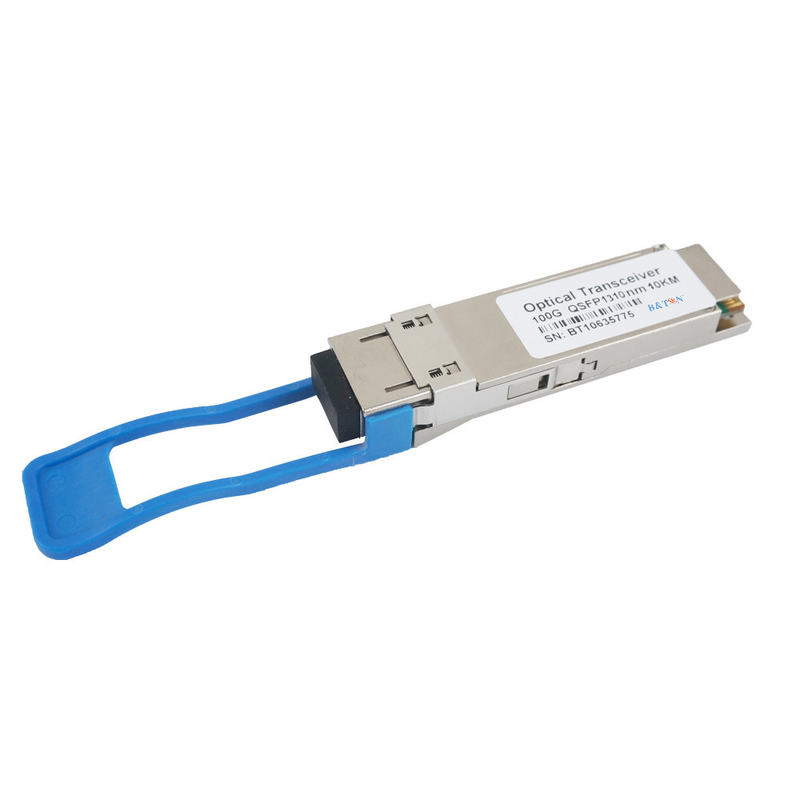

100G QSFP28 LR4 optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, four lanes of serial data streams are recovered, retimed, and passed to four laser drivers. The laser drivers control 4-Distributed Feedback Laser (DFB) with center wavelength of 1296 nm, 1300nm, 1305nm and 1309 nm. The optical signals are multiplexed to a single –mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically de-multiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a PIN photo-detector and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption and MDIO management interface.

Product Features :
* Compliant with 100GBASE-LR4
* Support line rates from 103.125 Gbps to 111.81 Gbps
* Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF
* Digital Diagnostics Monitoring Interface
* Duplex LC optical receptacle
* No external reference clock
* Electrically hot-pluggable
* Compliant with QSFP28 MSA with LC connector
* Case operating temperature range:0°C to 70°C
* Power dissipation < 3.5 W



HUAWEI 100G QSFP28 LR4 SFP Optical Transceiver 0

HUAWEI 100G QSFP28 LR4 SFP Optical Transceiver 1

HUAWEI 100G QSFP28 LR4 SFP Optical Transceiver 2

HUAWEI 100G QSFP28 LR4 SFP Optical Transceiver 3
