FC LC SC Singlemode Or Multimode Optical Fiber Pigtail PVC Or LSZH Out Cable

FC LC SC Singlemode Or Multimode Optical Fiber Pigtail PVC Or LSZH Out Cable
FC LC SC Singlemode Or Multimode Optical Fiber Pigtail PVC Or LSZH Out Cable FC LC SC Singlemode Or Multimode Optical Fiber Pigtail PVC Or LSZH Out Cable FC LC SC Singlemode Or Multimode Optical Fiber Pigtail PVC Or LSZH Out Cable FC LC SC Singlemode Or Multimode Optical Fiber Pigtail PVC Or LSZH Out Cable FC LC SC Singlemode Or Multimode Optical Fiber Pigtail PVC Or LSZH Out Cable FC LC SC Singlemode Or Multimode Optical Fiber Pigtail PVC Or LSZH Out Cable

Large Image :  FC LC SC Singlemode Or Multimode Optical Fiber Pigtail PVC Or LSZH Out Cable

Product Details:
Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: Fiber optic pigtail
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Price: USD0.61-4.5/PCS
Packaging Details: PE bag
Delivery Time: 3-15 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 1 million connector / month
Detailed Product Description
Cable Jacket: LSZH Or PVC Color: Yellow,orange,aqua,white
Length: Can Be Customized Diameter: 0.9mm,2.0mm,3.0mm
High Light:

fiber patch cord

,

st patch cord

FC, LC,SC, singlemode or multimode, optical fiber pigtail,PVC or LSZH out cable


►Parameter:

ParameterUnitFC, SC, LC/ Armoured fiber patch cordST, MUMT-RJ, MPOE2000
SMMMSMMMSMMMSM
PCUPCAPCPCPCUPCPCPCUPCPCPCAPC
Insertion loss(typical)dB≤0.3≤0.2≤0.3≤0.2≤0.3≤0.2≤0.2≤0.3≤0.2≤0.2≤0.3≤0.3
Return lossdB≥45≥50≥60≥30≥45≥50≥30≥45≥50≥35≥55≥75
Operating wavelengthnm1310, 15101310, 15101310, 15101310, 1510
ExchangeabilitydB≤0.2≤0.2≤0.2≤0.2
VibrationdB≤0.2≤0.2≤0.2≤0.2
Operating temperature°C-40~75-40~75-40~75-40~75
Storage temperature°C-45~85-45~85-45~85-45~85
Cable diametermmΦ3.0, Φ2.0, Φ0.9Φ3.0, Φ2.0, Φ0.9Φ3.0, Φ2.0, Φ0.9φ3.0, φ2.0, φ0.9


Application:


  1. Active device termination
  2. Telecommunication networks
  3. Video
  4. Multimedia
  5. Premise installations
  6. Local area networks
  7. FTTH and FTTX applications
  8. CATV

►Material of patch cord:

  1. Dust caps: LDPE, transparent (RoHS)
  2. Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
  3. Inner frame: PBT, white (RoHS)
  4. Ferrule: zirconium oxide ceramic material, white (RoHS)
  5. Ferrule’s handle: copper (C3602), nickelage (RoHS)
  6. Mechanical spring: stainless steel (RoHS)
  7. Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
  8. Snap ring: aluminium alloy 6063 (RoHS)
  9. Ring: copper alloy (HPD62), nickelage (RoHS)
  10. Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
  11. Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNR and more

►Order information:

  1. Type: SX/DX optional
  2. Ferrule end face: APC/UPC/PC
  3. Diameter: 0.9, 2.0, 3.0mm
  4. Length:1m, 2m, 3m to 120m
  5. Fiber: SM/OM1/OM2/OM3/OM4
  6. Material of jacket: PVC/LSZH/OFNR

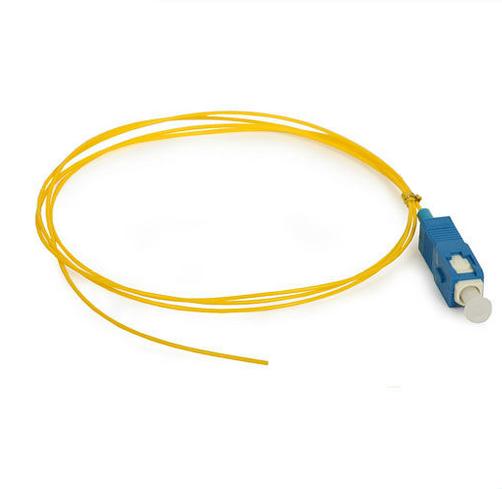

FC LC SC Singlemode Or Multimode Optical Fiber Pigtail PVC Or LSZH Out Cable 0

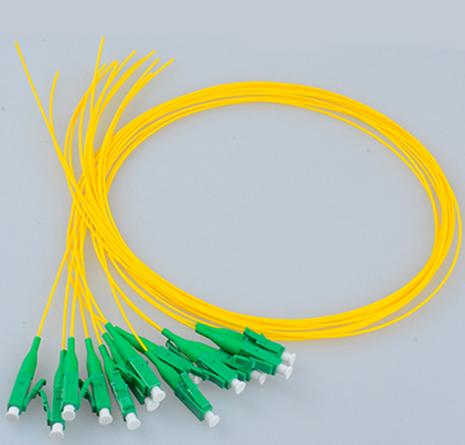

FC LC SC Singlemode Or Multimode Optical Fiber Pigtail PVC Or LSZH Out Cable 1
